22U-26-21570 22U-26-21572 203-26-51142 Pc200-7 PC200 PC210 PC228 PC228US Swing Gear Carrier Assy

22U-26-21570 22U-26-21572 203-26-51142 Pc200-7 PC200 PC210 PC228 PC228US Swing Gear Carrier Assy

  • 22U-26-21570 22U-26-21572 203-26-51142 Pc200-7 PC200 PC210 PC228 PC228US Swing Gear Carrier Assy
  • 22U-26-21570 22U-26-21572 203-26-51142 Pc200-7 PC200 PC210 PC228 PC228US Swing Gear Carrier Assy
  • 22U-26-21570 22U-26-21572 203-26-51142 Pc200-7 PC200 PC210 PC228 PC228US Swing Gear Carrier Assy
22U-26-21570 22U-26-21572 203-26-51142 Pc200-7 PC200 PC210 PC228 PC228US Swing Gear Carrier Assy
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 22U-26-21570 22U-26-21572 203-26-51142 Pc200-7 PC200 PC210 PC228 PC228US
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Carrier Planetary 2nd Assy Part Number: 22U-26-21570 22U-26-21572 203-26-51142
Used For: Pc200-7 PC200 PC210 PC228 PC228US Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

PC228US Swing Gear

,

22U-26-21572 Swing Gear

,

PC200 Swing Gear

22U-26-21570 22U-26-21572 203-26-51142 Pc200-7 PC200 PC210 PC228 PC228US Swing Gear Carrier Assy And Sun Gear 1st Carrier Planet

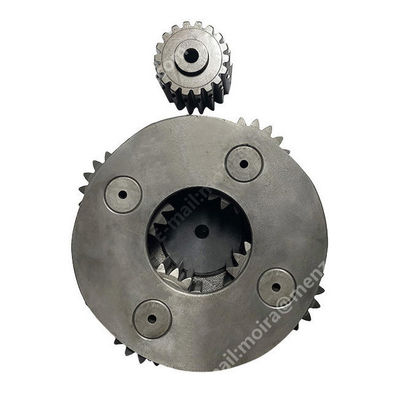

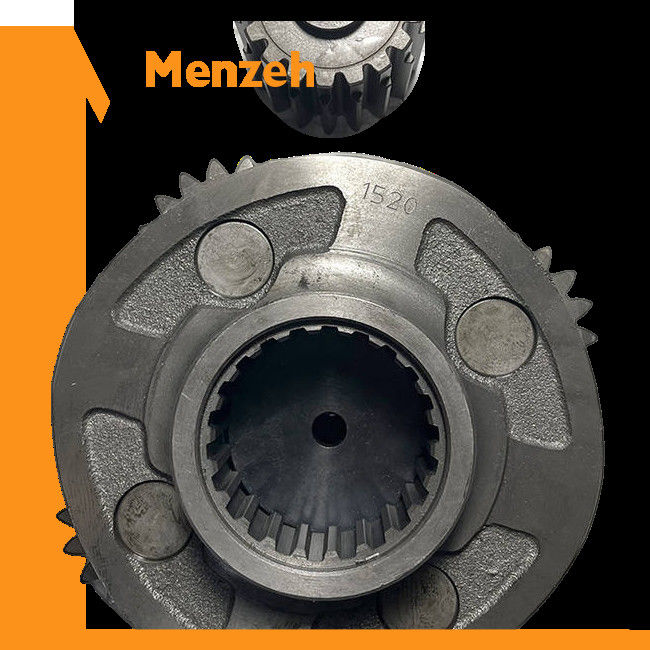

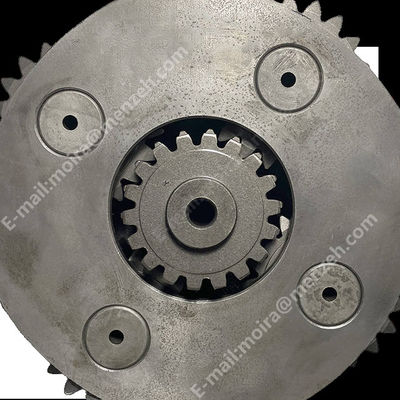

Part Name Swing Gear Carrier Assy
Part No. 22U-26-21570 22U-26-21572 203-26-51142
Used For Pc200-7 PC200 PC210 PC228 PC228US
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name Comments
1 706-7G-01050 [1] MOTOR ASS'Y Komatsu China
  ["SN: C70001--UP"]
2 22U-26-21280 [1] RING Komatsu 0.001 kg.
  ["SN: C70001--UP"] analogs:["20Y2622270"]
3 07042-00312 [1] PLUG Komatsu 0.031 kg.
  ["SN: C70001--UP"] analogs:["0704210312"]
4 22U-26-21190 [1] Komatsu China
  ["SN: C70001--UP"]
5 07029-00000 [1] VALVE Komatsu 0.09 kg.
  ["SN: C70001--UP"] analogs:["6127613890"]
6 20Y-26-22330 [1] BEARING Komatsu China 3.28 kg.
  ["SN: C70001--UP"] analogs:["20Y2622331", "20Y2622430"]
7 22U-26-21340 [1] BEARING Komatsu China
  ["SN: C70001--UP"]
8 22U-26-21560 [1] SHAFT, 15 TEETH Komatsu China
  ["SN: C70001--UP"]
9 07012-00115 [1] OIL SEAL Komatsu 0.127 kg.
  ["SN: C70001--UP"]
10 22U-26-21270 [1] SPACER Komatsu China
  ["SN: C70001--UP"]
11 07000-15310 [1] O-RING Komatsu China 0.035 kg.
  ["SN: C70001--UP"] analogs:["0700005310"]
12 22U-26-21580 [1] CARRIER Komatsu 8.7 kg.
  ["SN: C70001--UP"]
13 22U-26-21540 [4] GEAR Komatsu 2.46 kg.
  ["SN: C70001--UP"]
14 20G-26-11240 [4] BEARING Komatsu China 0.24 kg.
  ["SN: C70001--UP"] analogs:["20G2611241", "20G2611410"]
15 20Y-27-21240 [8] WASHER Komatsu China 0.02 kg.
  ["SN: C70001--UP"]
16 20Y-26-22250 [4] PIN Komatsu China 0.52 kg.
  ["SN: C70001--UP"]
17 20Y-27-21280 [4] PIN Komatsu China 0.01 kg.
  ["SN: C70001--UP"]
18 20Y-26-21240 [1] PLATE Komatsu 5.1 kg.
  ["SN: C70001--UP"]
19 112-32-11211 [1] BOLT, SHOE Komatsu 0.09 kg.
  ["SN: C70001--UP"]
20 22U-26-21550 [1] GEAR Komatsu 25.41 kg.
  ["SN: C70001--UP"] analogs:["22U2621551K2", "22U2621551"]
21 20K-22-11190 [1] O-RING Komatsu 0.02 kg.
  ["SN: C70001--UP"] analogs:["20G2211190"]
22 01010-81440 [18] BOLT Komatsu 0.073 kg.
  ["SN: C70001--UP"] analogs:["0101061440", "0101031440", "0101051440", "0104031440"]
22A. 01643-31445 [18] WASHER Komatsu 0.019 kg.
  ["SN: C70001--UP"] analogs:["0164301432"]
23 22U-26-21530 [1] GEAR Komatsu 5.8 kg.
  ["SN: C70001--UP"]
24 22U-26-21570 [1] CARRIER Komatsu 2.96 kg.
  ["SN: C70001--UP"] analogs:["22U2621572"]
25 22U-26-21520 [3] GEAR Komatsu 1.54 kg.
  ["SN: C70001--UP"]
26 20Y-26-21281 [3] BEARING Komatsu 0.1 kg.
  ["SN: C70001--UP"] analogs:["20Y2621280", "20X2621240", "20Y2621510"]
27 22U-26-21230 [6] WASHER, THRUST Komatsu 1 kg.
  ["SN: C70001--UP"]
28 22U-26-21210 [3] PIN Komatsu 0.81 kg.
  ["SN: C70001--UP"]
29 04064-03515 [6] SNAP RING Komatsu 0.005 kg.
  ["SN: C70001--UP"]
30 22U-26-21250 [1] WASHER, THRUST Komatsu 1 kg.
  ["SN: C70001--UP"]
31 22U-26-21510 [1] GEAR Komatsu 1.56 kg.
  ["SN: C70001--UP"]
32 195-03-13241 [1] VALVE Komatsu 0.9 kg.
  ["SN: C70001--UP"]
33 07270-21560 [1] TUBE Komatsu 0.336 kg.
  ["SN: C70001--UP"]
34 07281-00197 [1] CLAMP Komatsu 0.015 kg.
  ["SN: C70001--UP"] analogs:["1950313250"]
35 01010-81035 [6] BOLT Komatsu 0.033 kg.
  ["SN: C70001--UP"] analogs:["801015556", "01010D1035", "0101051035"]
36 01643-51032 [6] WASHER Komatsu 0.17 kg.
  ["SN: C70001--UP"] analogs:["R0164351032"]
37 20Y-26-31410 [1] TUBE Komatsu China
  ["SN: C70001--UP"]
38 20Y-26-31420 [1] FILLER Komatsu China
  ["SN: C70001--UP"]
39 20Y-26-31430 [1] GAUGE Komatsu 0.15 kg.
  ["SN: C70001--UP"]
40 20Y-26-31441 [1] BRACKET Komatsu 0.88 kg.
  ["SN: C70001--UP"]
41 22U-26-21460 [1] CAP Komatsu 0.06 kg.
  ["SN: C70001--UP"] analogs:["22U2621920"]
42 07238-10630 [1] CONNECTOR Komatsu 0.24 kg.
  ["SN: C70001--UP"]
43 07283-32738 [1] CLIP Komatsu 0.084 kg.
  ["SN: C70001--UP"]
44 04434-51710 [1] CLIP Komatsu 0.02 kg.
  ["SN: C70001--UP"]
45 01597-01009 [2] NUT Komatsu 0.011 kg.
  ["SN: C70001--UP"]
46 01643-31032 [2] WASHER Komatsu 0.054 kg.
  ["SN: C70001--UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
47 01010-81030 [2] BOLT Komatsu OEM 0.03 kg.
  ["SN: C70001--UP"] analogs:["801015110", "M018011000306", "YM26116100302", "0101051030"]
49 01010-81025 [1] BOLT Komatsu 0.36 kg.
  ["SN: C70001--UP"] analogs:["0101051025", "0101651025", "801015109"]
51 07000-15240 [1] O-RING Komatsu OEM 0.055 kg.
  ["SN: C70001--UP"] analogs:["0700005240"]
52 01010-82060 [12] BOLT Komatsu China 0.2 kg.
  ["SN: C70001--UP"] analogs:["0101062060", "0101052060", "0101032060"]
53 01643-32060 [12] WASHER Komatsu China 0.044 kg.
  ["SN: C70001--UP"] analogs:["802170007", "0164322045", "0164302045"]

22U-26-21570 22U-26-21572 203-26-51142 Pc200-7 PC200 PC210 PC228 PC228US Swing Gear Carrier Assy 0



22U-26-21570 22U-26-21572 203-26-51142 Pc200-7 PC200 PC210 PC228 PC228US Swing Gear Carrier Assy 1

22U-26-21570 22U-26-21572 203-26-51142 Pc200-7 PC200 PC210 PC228 PC228US Swing Gear Carrier Assy 222U-26-21570 22U-26-21572 203-26-51142 Pc200-7 PC200 PC210 PC228 PC228US Swing Gear Carrier Assy 322U-26-21570 22U-26-21572 203-26-51142 Pc200-7 PC200 PC210 PC228 PC228US Swing Gear Carrier Assy 4











FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
