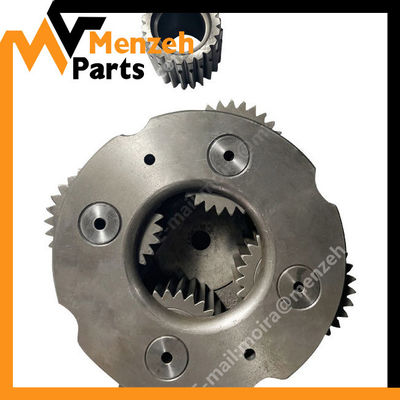

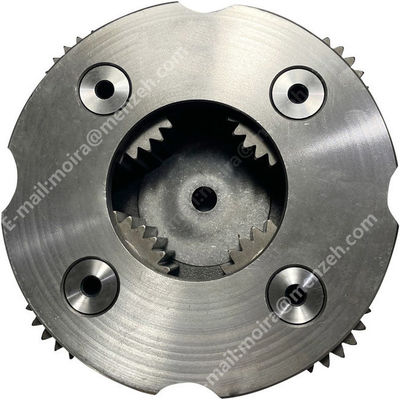

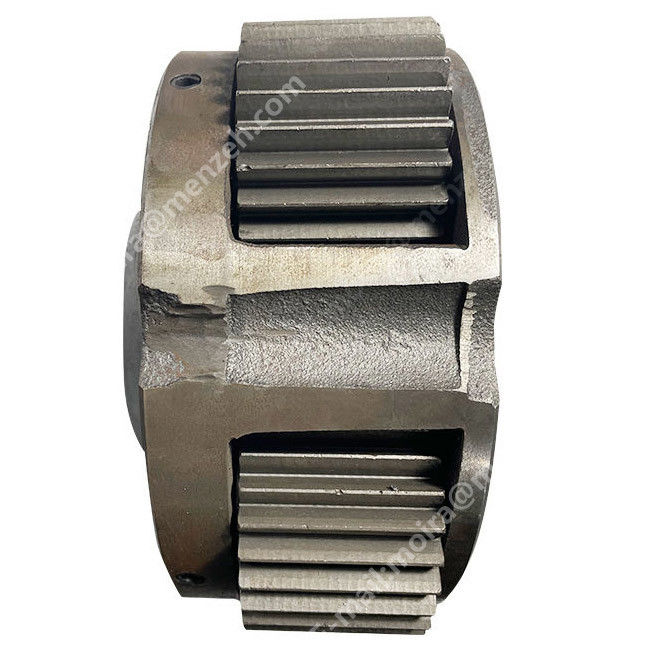

2230-1037 2230-1014 100502-00017 DH220-5 SOLAR 220LC-V Oem Spare Part Carrier Assy 2nd Swing Reduction Gear

2230-1037 2230-1014 100502-00017 DH220-5 SOLAR 220LC-V Oem Spare Part Carrier Assy 2nd Swing Reduction Gear

  • 2230-1037 2230-1014 100502-00017 DH220-5 SOLAR 220LC-V Oem Spare Part  Carrier Assy 2nd Swing Reduction Gear
  • 2230-1037 2230-1014 100502-00017 DH220-5 SOLAR 220LC-V Oem Spare Part  Carrier Assy 2nd Swing Reduction Gear
  • 2230-1037 2230-1014 100502-00017 DH220-5 SOLAR 220LC-V Oem Spare Part  Carrier Assy 2nd Swing Reduction Gear
2230-1037 2230-1014 100502-00017 DH220-5 SOLAR 220LC-V Oem Spare Part  Carrier Assy 2nd Swing Reduction Gear
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 2230-1037 2230-1014 100502-00017 DH220-5 SOLAR 220LC-V
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Carrier Part Number: 2230-1037 2230-1014 100502-00017
Used For: DH220-5 SOLAR 220LC-V Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

2230-1037 Carrier Assy

,

DH220-5 Carrier Assy

,

2230-1014 Carrier Assy

2230-1037 2230-1014 100502-00017 DH220-5 SOLAR 220LC-V Oem Spare Part Carrier Ass'Y 2nd Swing Reduction Gear



Part Name Carrier
Part No. 2230-1037 2230-1014 100502-00017
Used For DH220-5 SOLAR 220LC-V
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name Comments
-. 2404-1063 [1] GEAR;REDUCTION 2404-1063B
-. 2404-1063B [1] GEAR;REDUCTION 2404-1063E
-. 2404-1063E [1] GEAR;REDUCTION 2404-1063G
-. 2404-1063G [1] GEAR;REDUCTION 2404-1063I
-. 2404-1063I [1] GEAR;REDUCTION 2404-1063J
-. 2404-1063J [1] GEAR;REDUCTION
1 2423-1496 [1] CASING 2423-1496C
1 2423-1496C [1] CASING 2423-1496E
1 2423-1496E [1] CASING
1 2423-1496G [1] CASING
10 2230-1037 [1] CARRIER NO.2 2230-1037A
10 2230-1037A [1] CARRIER NO.2
11 2114-1901A [4] WASHER;THRUST NO.2
11 2114-1901A [7] WASHER;THRUST NO.2
11 2114-1901A [8] WASHER;THRUST NO.2
12 2104-1022 [4] GEAR;PLANET NO.2 2104-1022B
12 2104-1022B [4] GEAR;PLANET NO.2
13 2110-1371 [4] BUSH NO.2 2110-1371A
13 2110-1371A [4] BUSH NO.2
14 2123-2322 [4] PIN NO.2 2123-2322B
14 2123-2322B [4] PIN NO.2
15 S5741341 [4] PIN;SPRING
16 S0121061 [1] BOLT
17 2114-1902 [1] WASHER;THRUST NO.3
18 2104-1021 [1] GEAR;SUN NO.2 2104-1021B
18 2104-1021B [1] GEAR;SUN NO.2
19 2705-1030 [4] PIN;KNOCK
2 2112-1248 [1] SHAFT;DRIVE 2112-1248A
2 2112-1248A [1] SHAFT;DRIVE 2112-1248B
2 2112-1248B [1] SHAFT;DRIVE 2112-1248C
2 2112-1248C [1] SHAFT;DRIVE
20 2230-1036 [1] CARRIER NO.1
20 2230-1036A [1] CARRIER NO.1
20 2230-1036B [1] CARRIER NO.1
21 2114-1900A [3] WASHER;THRUST NO.1
22 2104-1020 [3] GEAR;PLANET NO.1 2104-1020B
22 2104-1020B [3] GEAR;PLANET NO.1
22 2104-1020C [3] GEAR;PLANET NO.1
22 2104-1020C [4] GEAR;PLANET NO.1
23 2123-2327A [4] PIN ASS'Y NO.1
23 2123-2327 [3] PIN ASS'Y NO.1
23 2123-2327A [3] PIN ASS'Y NO.1
24 S2217471 [16] BOLT;SOCKET
25 2104-1019 [1] GEAR;SUN NO.1 2104-1019B
25 2104-1019B [1] GEAR;SUN NO.1
26 S6500450 [1] RING;SNAP
27 2181-1116D2 [2] PLUG
28 2181-1116D4 [1] PLUG
29 2140-1406 [1] PIPE;LEVEL GAUGE
3 2412-1040 [1] PLATE
30 2119-1065 [1] GAUGE;LEVEL
31 S5231090 [1] WASHER;DOUBLE TAP
32 2182-1756 [4] PIPE 2182-1756A
32 2182-1756A [4] PIPE
33 120-00144 [8] BOLT
4 2109-9033 [1] BEARING;ROLLER
5 2891-1421 [1] PLATE;COVER 2891-1421A
5 2891-1421A [1] PLATE;COVER 2891-1421B
5 2891-1421B [1] PLATE;COVER
50 230-00050 [1] CARRIER NO.1 ASS'Y
50 230-00050A [1] CARRIER NO.1 ASS'Y
51 230-00051 [1] CARRIER NO.2 ASS'Y
6 2120-2167 [8] BOLT;FLAT M10X1.5X25
7 2180-1254 [1] SEAL;OIL
8 2109-1050 [1] BEARING;ROLLER 109-00174
8 109-00174 [1] BEARING;ROLLER
9 2104-1013 [1] GEAR;RING 2104-1013A
9 2104-1013A [1] GEAR;RING



2230-1037 2230-1014 100502-00017 DH220-5 SOLAR 220LC-V Oem Spare Part  Carrier Assy 2nd Swing Reduction Gear 0



2230-1037 2230-1014 100502-00017 DH220-5 SOLAR 220LC-V Oem Spare Part  Carrier Assy 2nd Swing Reduction Gear 1

2230-1037 2230-1014 100502-00017 DH220-5 SOLAR 220LC-V Oem Spare Part  Carrier Assy 2nd Swing Reduction Gear 22230-1037 2230-1014 100502-00017 DH220-5 SOLAR 220LC-V Oem Spare Part  Carrier Assy 2nd Swing Reduction Gear 32230-1037 2230-1014 100502-00017 DH220-5 SOLAR 220LC-V Oem Spare Part  Carrier Assy 2nd Swing Reduction Gear 4











FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
