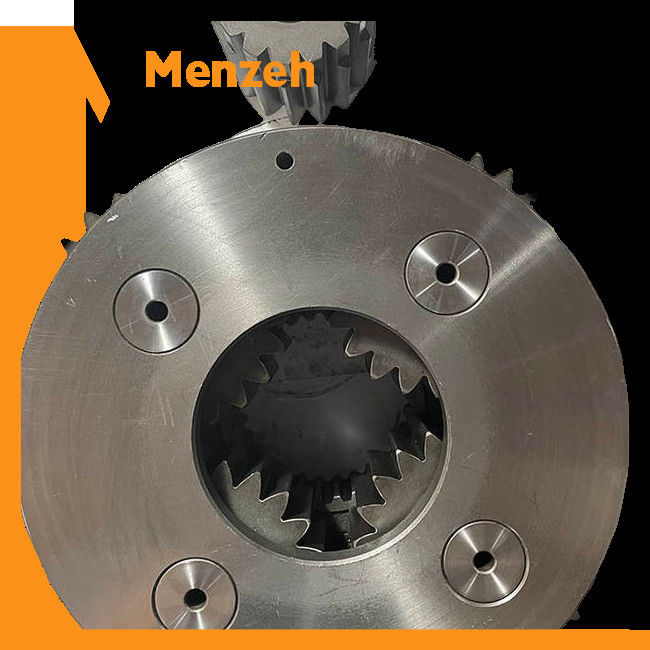

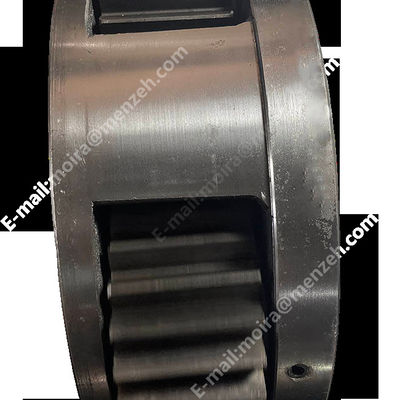

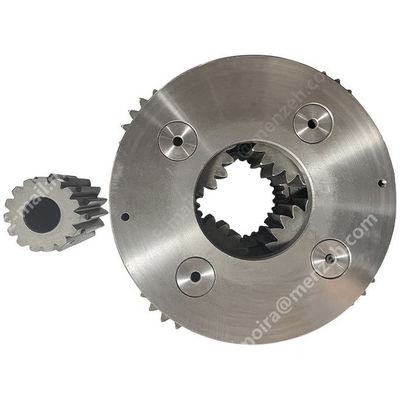

2413J376 2413T376 24100U1682S2 2413J380 Sk250-8 SK250 SK235SR-1E SK250LC SK485-8 Planetary 2nd Swing Spider Assy

2413J376 2413T376 24100U1682S2 2413J380 Sk250-8 SK250 SK235SR-1E SK250LC SK485-8 Planetary 2nd Swing Spider Assy

  • 2413J376 2413T376 24100U1682S2 2413J380 Sk250-8 SK250 SK235SR-1E SK250LC SK485-8 Planetary 2nd Swing Spider Assy
  • 2413J376 2413T376 24100U1682S2 2413J380 Sk250-8 SK250 SK235SR-1E SK250LC SK485-8 Planetary 2nd Swing Spider Assy
  • 2413J376 2413T376 24100U1682S2 2413J380 Sk250-8 SK250 SK235SR-1E SK250LC SK485-8 Planetary 2nd Swing Spider Assy
2413J376 2413T376 24100U1682S2 2413J380 Sk250-8 SK250 SK235SR-1E SK250LC SK485-8 Planetary 2nd Swing Spider Assy
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 2413J376 2413T376 24100U1682S2 2413J380 Sk250-8 SK250 SK235SR-1E SK250LC SK485-8
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden Case
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Gear Part Number: 2413J376 2413T376 24100U1682S2 2413J380
Used For: Sk250-8 SK250 SK235SR-1E SK250LC SK485-8 Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

Planetary 2nd Swing Spider Assy

,

SK485-8 Swing Spider Assy

,

2413J376 Swing Spider Assy

2413J376 2413T376 24100U1682S2 2413J380 Sk250-8 SK250 SK235SR-1E SK250LC SK485-8 Planetary 2nd Swing Spider Assy

Part Name Gear
Part No. 2413J376 2413T376 24100U1682S2 2413J380
Used For Sk250-8 SK250 SK235SR-1E SK250LC SK485-8
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name Comments
. . LQ32W00007F1 [1] HYDRAULIC MOTOR KOB F1 ONLY, Serial Range: -5/2/00 Superseded by part number: LQ32W00007F3
. . LQ32W00007F3 [1] REDUCER KOB REDUCTION ASSY, SWING (F2 ONLY), Start Serial: 5/2/00
1 LQ32W01002P1 [1] DRIVEN SPROCKET KOB SHAFT, PINION
2 ZD11G11000 [1] O-RING,109.40mm ID x 115.60mm OD x 3.10mm KOB ID 109.40 ± 0.91 x OD 115mm
3 LQ32W01014P1 [1] BUSHING KOB SLEEVE
4 LQ32W01021P1 [1] SEAL KOB SEAL, OIL, (200.235.26)
5 2418T17494 [1] SPACER KOB
6 ZS23C10030 [14] SCREW,Hex Socket Head, M10 x 30mm KOB M10x1.50x30mm Superseded by part number: ZS28C10030
7 ZE82T12000 [1] PLUG KOB 3/4" PT
8 LQ32W01003P1 [1] RETAINER KOB
9 LQ32W01016P1 [1] SPHERICAL BEARING KOB SPHERICAL, (110.240.80)
10 LQ32W01001P1 [1] HOUSING HOUSING
11 LQ32W01012P1 [1] SPACER KOB
12 ZS83C20030 [2] SCREW KOB Set -- M20x2.50x30mm
13 2420T6698D6 [1] PIPE KOB
14 ZG31U12000 [1] ELBOW KOB
15 LQ32W01015P1 [1] SPHERICAL BEARING KOB SPHERICAL (100.180.46)
16 ZR16X10000 [1] RING KOB Retaining -- ID 94.50 x OD 119 x Th 3.0mm
17 2413J376 [1] DIFF. SPIDER KOB
18 LQ32W01010P1 [1] GEAR KOB SUN
19 LQ32W01005P1 [1] RING GEAR KOB
20 LQ32W01007F1 [1] SPIDER KOB ASSY
21 2410T352 [4] ROLLER SHAFT KOB
22 ZP26D08032 [4] PIN KOB Roll -- OD 08 x 32mm Long
23 LQ32W01018P1 [8] WASHER KOB THRUST
24 LQ32W01009P1 [4] DRIVEN SPROCKET KOB PINION
25 2425Z541 [4] NEEDLE BEARING,40mm ID x 54mm OD x 50mm W KOB NEEDLE (40.54.50)
26 LQ32W01013P1 [8] WASHER KOB THRUST
27 2425Z540 [4] NEEDLE BEARING,40mm ID x 48mm OD x 25mm W KOB NEEDLE (40.48.25)
28 LQ32W01011P1 [4] DRIVEN SPROCKET KOB PINION
29 ZR16X04000 [5] RING KOB Retaining -- ID 37 x OD 40 x Th 1.8mm
30 ZS23C14150 [14] SCREW,Hex Socket Head, M14 x 150mm KOB M14x2.0x150mm, (F1 Only)
31 LQ32W01020P1 [1] SUN GEAR KOB
32 2420T4530 [2] SCREW,M14 x 2 x 185mm KOB M14x2.0x185mm, (F1 ONLY)



2413J376 2413T376 24100U1682S2 2413J380 Sk250-8 SK250 SK235SR-1E SK250LC SK485-8 Planetary 2nd Swing Spider Assy 0



2413J376 2413T376 24100U1682S2 2413J380 Sk250-8 SK250 SK235SR-1E SK250LC SK485-8 Planetary 2nd Swing Spider Assy 1

2413J376 2413T376 24100U1682S2 2413J380 Sk250-8 SK250 SK235SR-1E SK250LC SK485-8 Planetary 2nd Swing Spider Assy 22413J376 2413T376 24100U1682S2 2413J380 Sk250-8 SK250 SK235SR-1E SK250LC SK485-8 Planetary 2nd Swing Spider Assy 32413J376 2413T376 24100U1682S2 2413J380 Sk250-8 SK250 SK235SR-1E SK250LC SK485-8 Planetary 2nd Swing Spider Assy 42413J376 2413T376 24100U1682S2 2413J380 Sk250-8 SK250 SK235SR-1E SK250LC SK485-8 Planetary 2nd Swing Spider Assy 5











FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.



2413J376 2413T376 24100U1682S2 2413J380 Sk250-8 SK250 SK235SR-1E SK250LC SK485-8 Planetary 2nd Swing Spider Assy 62413J376 2413T376 24100U1682S2 2413J380 Sk250-8 SK250 SK235SR-1E SK250LC SK485-8 Planetary 2nd Swing Spider Assy 72413J376 2413T376 24100U1682S2 2413J380 Sk250-8 SK250 SK235SR-1E SK250LC SK485-8 Planetary 2nd Swing Spider Assy 82413J376 2413T376 24100U1682S2 2413J380 Sk250-8 SK250 SK235SR-1E SK250LC SK485-8 Planetary 2nd Swing Spider Assy 92413J376 2413T376 24100U1682S2 2413J380 Sk250-8 SK250 SK235SR-1E SK250LC SK485-8 Planetary 2nd Swing Spider Assy 102413J376 2413T376 24100U1682S2 2413J380 Sk250-8 SK250 SK235SR-1E SK250LC SK485-8 Planetary 2nd Swing Spider Assy 11

2413J376 2413T376 24100U1682S2 2413J380 Sk250-8 SK250 SK235SR-1E SK250LC SK485-8 Planetary 2nd Swing Spider Assy 122413J376 2413T376 24100U1682S2 2413J380 Sk250-8 SK250 SK235SR-1E SK250LC SK485-8 Planetary 2nd Swing Spider Assy 132413J376 2413T376 24100U1682S2 2413J380 Sk250-8 SK250 SK235SR-1E SK250LC SK485-8 Planetary 2nd Swing Spider Assy 14
