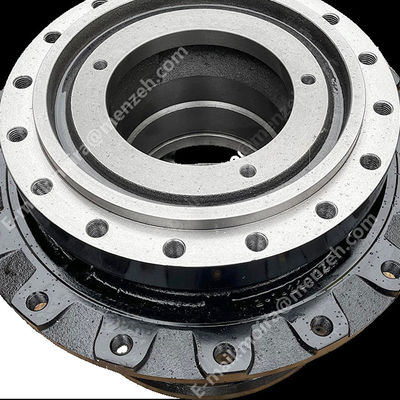

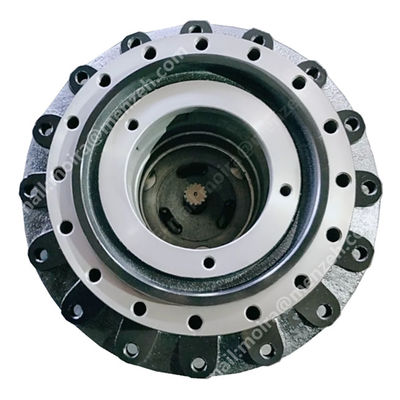

480-6768 Excavator Travel Reduction Gearbox cat320D E320D E320D2 Travel Gearbox

480-6768 Excavator Travel Reduction Gearbox cat320D E320D E320D2 Travel Gearbox

  • 480-6768 Excavator Travel Reduction Gearbox cat320D E320D E320D2 Travel Gearbox
  • 480-6768 Excavator Travel Reduction Gearbox cat320D E320D E320D2 Travel Gearbox
  • 480-6768 Excavator Travel Reduction Gearbox cat320D E320D E320D2 Travel Gearbox
480-6768 Excavator Travel Reduction Gearbox cat320D E320D E320D2 Travel Gearbox
Product Details:
Place of Origin: CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: CAT320D E320D E320D2
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden Case
Delivery Time: 2-4 working Days
Payment Terms: Western Union, T/T,ALI PAY
Supply Ability: 100 pcs per Day
Contact Now
Detailed Product Description
Part Name: Travel Reduction Part Number: 480-6768
Used For: CAT320D E320D E320D2 Condiction: New Aftermarket One
Warrenty: 120 Days Material: Steel
Delivery: After Payment 1-2 Days
High Light:

480-6768 Excavator Travel Reduction Gearbox

,

E320D2 Travel Reduction Gearbox

,

cat320D Travel Gearbox



480-6768 Excavator Travel Reduction Gearbox 320D E320D E320D2 Travel Gearbox

Part Name Traval Gearbox
Part No. 480-6768
Used For cat320D E320D E320D2
Warrenty 4 months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name
1. 3E-2338 [2] PLUG-PIPE
2. 094-0578 B [1] PLATE (8-MM THK)
3. 094-0579 B [1] PLATE (9-MM THK)
4. 094-0580 B [1] PLATE (10-MM THK)
5. 094-1528 [12] WASHER (53X84X1-MM THK)
6. 168-8452 J [2] BALL BEARING
7. 169-5585 J [1] HOUSING
8. 169-5589 [1] GEAR-SUN (24-TEETH)
9. 169-5590 [1] GEAR-SUN (24-TEETH)
10. 169-5592 [3] GEAR-PLANETARY (23-TEETH)
11. 169-5593 [3] GEAR-PLANETARY (23-TEETH)
12. 169-5601 [3] SHAFT-PLANETARY
13. 169-5602 [3] SHAFT-PLANETARY
14. 171-9387 [1] GEAR-RING (64-TEETH)
15. 191-2569 [3] BEARING AS (CAGED ROLLER)
16. 191-2570 [6] BEARING AS (CAGED ROLLER)
17. 191-2571 [1] CARRIER-PLANETARY
18. 191-2676 [1] GEAR-RING (72-TEETH)
19. 191-2683 [1] GEAR-SUN (20-TEETH)
20. 191-2684 [3] GEAR-PLANETARY (21-TEETH)
21. 191-2685 [3] BEARING AS
22. 191-2686 [1] CARRIER AS
23. 191-2689 [3] WASHER (34X70X1-MM THK)
24. 191-2690 [3] WASHER (42.3X70X1-MM THK)
25. 199-4503 [1] COVER
26. 207-1571 J [1] SEAL GP-DUO-CONE
26A. 214-3570 [2] RING-TORIC
26B. Z [2] SEAL-RING
27. 227-6117 J [1] HOUSING-MOTOR
28. 227-6118 J [1] RETAINER
29. 227-6119 [1] CARRIER-PLANETARY
30. 227-6123 J [2] DOWEL
31. 227-6124 J [2] PLATE-WASHER
32. 093-1731 [2] RING-RETAINING
33. 095-0891 [6] PIN-SPRING
34. 096-0433 [3] RING-RETAINING
35. 096-3216 M [2] SETSCREW-SOCKET (M12X1.75X12-MM)
36. 171-9298 [1] SEAL-O-RING
37. 179-8733 M [16] BOLT (M20X2.5X170-MM)
38. 7M-8485 [2] SEAL-O-RING
39. 7Y-0595 [3] SPACER (58X79.6X6-MM THK)
40. 8T-0293 JM [4] BOLT (M12X1.75X20-MM)
41. 8T-4123 [16] WASHER (3.62X5.75X0.375-MM THK)



480-6768 Excavator Travel Reduction Gearbox cat320D E320D E320D2 Travel Gearbox 0












480-6768 Excavator Travel Reduction Gearbox cat320D E320D E320D2 Travel Gearbox 1480-6768 Excavator Travel Reduction Gearbox cat320D E320D E320D2 Travel Gearbox 2480-6768 Excavator Travel Reduction Gearbox cat320D E320D E320D2 Travel Gearbox 3
FAQ:
1.  If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2.  What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3.  How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4.  When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5.  How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6.  What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.



480-6768 Excavator Travel Reduction Gearbox cat320D E320D E320D2 Travel Gearbox 4480-6768 Excavator Travel Reduction Gearbox cat320D E320D E320D2 Travel Gearbox 5480-6768 Excavator Travel Reduction Gearbox cat320D E320D E320D2 Travel Gearbox 6480-6768 Excavator Travel Reduction Gearbox cat320D E320D E320D2 Travel Gearbox 7480-6768 Excavator Travel Reduction Gearbox cat320D E320D E320D2 Travel Gearbox 8480-6768 Excavator Travel Reduction Gearbox cat320D E320D E320D2 Travel Gearbox 9

480-6768 Excavator Travel Reduction Gearbox cat320D E320D E320D2 Travel Gearbox 10480-6768 Excavator Travel Reduction Gearbox cat320D E320D E320D2 Travel Gearbox 11



Feature of Excavator Travel Gearbox

1. Completely, assembly, and ready to installed in your Excavator CAT320C

2. Without MOTOR, already been installed the MOTOR SHAFT & MOTOR HOUSING.

3. All components are produced by us.

4. All new, undamaged.

5. Painted or Unpainted, depend on requirement

6. 180 days warranty, call or email with any questions.

7. Plywood Case Packing, free of fumigation

8. Deliver to worldwide by Sea, Air, or Carrier.
