VOE14547273 VOE14547274 VOE14566418 VOE14566411 Ec290 EC290B EC290C EC300D EC300E EC330B Swing Reduction Carrier Assy

VOE14547273 VOE14547274 VOE14566418 VOE14566411 Ec290 EC290B EC290C EC300D EC300E EC330B Swing Reduction Carrier Assy

  • VOE14547273 VOE14547274 VOE14566418 VOE14566411 Ec290 EC290B EC290C EC300D EC300E EC330B Swing Reduction Carrier Assy
VOE14547273 VOE14547274 VOE14566418 VOE14566411 Ec290 EC290B EC290C EC300D EC300E EC330B Swing Reduction Carrier Assy
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: VOE14547273 VOE14547274 VOE14566418 VOE14566411 Ec290 EC290B EC290C EC300D EC300E EC330B
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Gear Part Number: VOE14547273 VOE14547274 VOE14566418 VOE14566411
Used For: Ec290 EC290B EC290C EC300D EC300E EC330B Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

EC330B Swing Reduction Carrier Assy

,

EC290C Swing Reduction Carrier Assy

,

VOE14547273 Swing Reduction Carrier Assy

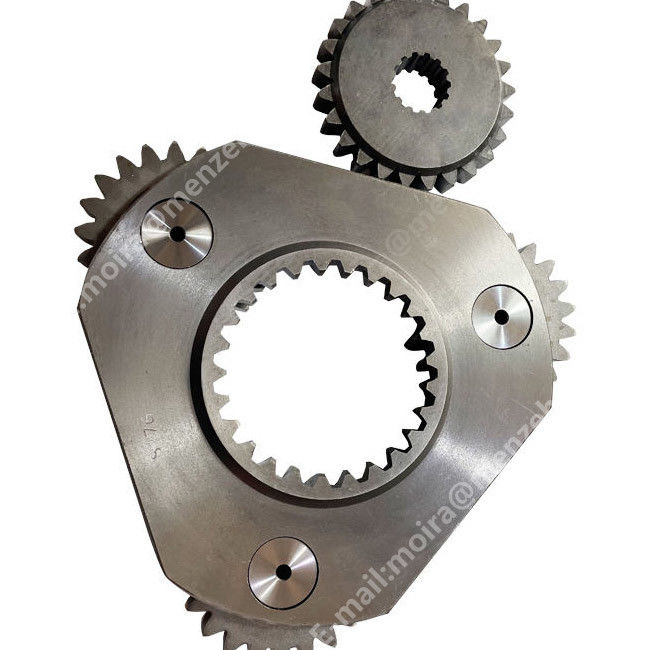

VOE14547273 VOE14547274 VOE14566418 VOE14566411 Ec290 EC290B EC290C EC300D EC300E EC330B Travel Device Swing Reduction Part Carrier Assy Sun Gear

Part Name Carrier
Part No. VOE14547273 VOE14547274 VOE14566418 VOE14566411
Used For Ec290 EC290B EC290C EC300D EC300E EC330B
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name Comments
  VOE14569767 [1] Swing gearbox
1 VOE14547262 [1]
2 VOE14547260 [1] Ring
3 VOE14547259 [1] Collar
4 VOE14547258 [1] Shaft
5 VOE14547263 [1] Cover
6 VOE14547266 [1] Gear
7 VOE984363 [0020] Hex. socket screw
8 VOE13944938 [12] Screw
9 VOE14547261 [1] Bearing
10 SA9415-43012 [1] Plug
11 VOE914167 [1] Lubricating nipple
12 VOE14566830 [1] Seal
13 VOE14547265 [1] Bearing
14 SA9541-01110 [1] Retaining ring
15 SA7118-30380 [1] Thrust ring
16 VOE14547272 [1] Gear
17 VOE14880960 [1] Retaining ring
18 VOE14547279 [1] Gear
19 VOE14547278 [1] Thrust washer
20 VOE14547281 [1] Pipe
21 VOE14547280 [1] Planet carrier
22 VOE14547267 [1] Planet carrier
23 VOE14547271 [4] Pin
24 VOE14547268 [4] Gear
25 VOE14547269 [4] Bushing
26 VOE14556491 [8] Washer
27 SA9325-06012 [4] Spring pin
28 VOE14547273 [1] Planet carrier
29 VOE14547274 [1] Planet carrier
30 VOE14547275 [3] Gear
31 SA7117-30230 [3] Needle bearing
32 VOE14547277 [3] Pin
33 SA9325-06012 [3] Spring pin
34 VOE14547276 [6] Washer
35 VOE950677 [4] Pin
36 VOE949329 [1] Gasket
37 VOE14722461 [1] Draining valve

VOE14547273 VOE14547274 VOE14566418 VOE14566411 Ec290 EC290B EC290C EC300D EC300E EC330B Swing Reduction Carrier Assy 0



VOE14547273 VOE14547274 VOE14566418 VOE14566411 Ec290 EC290B EC290C EC300D EC300E EC330B Swing Reduction Carrier Assy 1

VOE14547273 VOE14547274 VOE14566418 VOE14566411 Ec290 EC290B EC290C EC300D EC300E EC330B Swing Reduction Carrier Assy 2











FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.



VOE14547273 VOE14547274 VOE14566418 VOE14566411 Ec290 EC290B EC290C EC300D EC300E EC330B Swing Reduction Carrier Assy 3VOE14547273 VOE14547274 VOE14566418 VOE14566411 Ec290 EC290B EC290C EC300D EC300E EC330B Swing Reduction Carrier Assy 4VOE14547273 VOE14547274 VOE14566418 VOE14566411 Ec290 EC290B EC290C EC300D EC300E EC330B Swing Reduction Carrier Assy 5VOE14547273 VOE14547274 VOE14566418 VOE14566411 Ec290 EC290B EC290C EC300D EC300E EC330B Swing Reduction Carrier Assy 6VOE14547273 VOE14547274 VOE14566418 VOE14566411 Ec290 EC290B EC290C EC300D EC300E EC330B Swing Reduction Carrier Assy 7VOE14547273 VOE14547274 VOE14566418 VOE14566411 Ec290 EC290B EC290C EC300D EC300E EC330B Swing Reduction Carrier Assy 8

VOE14547273 VOE14547274 VOE14566418 VOE14566411 Ec290 EC290B EC290C EC300D EC300E EC330B Swing Reduction Carrier Assy 9VOE14547273 VOE14547274 VOE14566418 VOE14566411 Ec290 EC290B EC290C EC300D EC300E EC330B Swing Reduction Carrier Assy 10VOE14547273 VOE14547274 VOE14566418 VOE14566411 Ec290 EC290B EC290C EC300D EC300E EC330B Swing Reduction Carrier Assy 11
