Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: XKAQ-00754 39Q6-42190 39Q6-42260 XKAQ-00015 XKAQ-00075 R160Lc R210Lc HX180L R160LC9
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden Case
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Carrier Assy Part Number: XKAQ-00754 39Q6-42190 39Q6-42260 XKAQ-00015 XKAQ-00075
Used For: R160Lc R210Lc HX180L R160LC9 Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/TNT/UPS/SEA/AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

39Q6-42190 2nd Carrier

,

XKAQ-00075 2nd Carrier

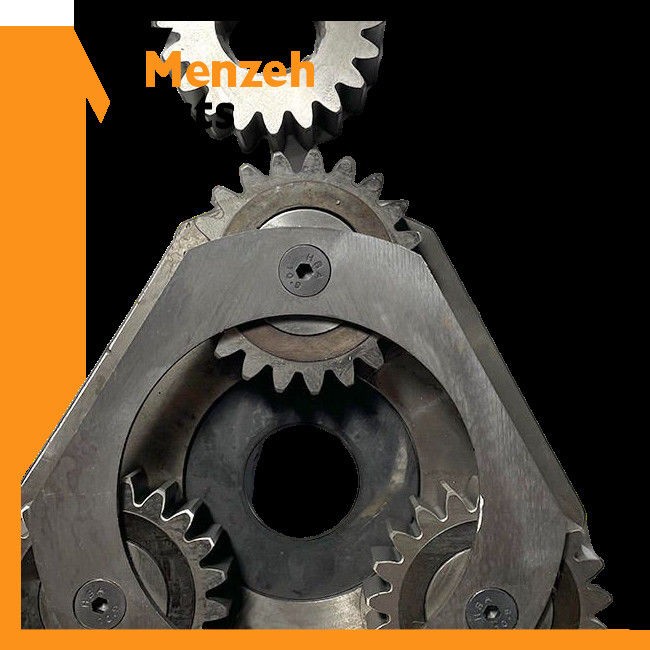

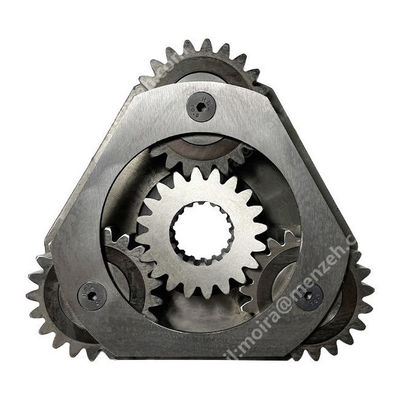

XKAQ-00754 39Q6-42190 39Q6-42260 XKAQ-00015 XKAQ-00075 R160Lc 9 R210Lc 9 HX180L R160LC9 Swing Gearbox Xkaq 1st 2nd Carrier Assy



Part Name Carrier assy
Part No. XKAQ-00754 39Q6-42190 39Q6-42260 XKAQ-00015 XKAQ-00075
Used For R160Lc 9 R210Lc 9 HX180L R160LC9
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name Comments
N*. @ [1] SWING MOTOR ASSY SEE 4100
*-2. 31Q6-10140 [1] SWING REDUCTION GEAR
*-2. 31Q6-10141 [1] SWING REDUCTION GEAR
*-2. 31Q6-10141AR [1] SWING REDUCTION GEAR
1 XKAQ-00771 [1] CASING
1 XKAQ-00962 [1] CASING
2 XKAQ-00403 [1] SHAFT-DRIVE
2 XKAQ-00780 [1] SHAFT-DRIVE
3 XKAQ-00018 [1] SPACER
4 XKAQ-00026 [1] BEARING-ROLLER
5 XKAQ-00032 [1] SEAL-OIL
6 XKAQ-00029 [1] BEARING-ROLLER
6 XKAQ-00647 [1] BEARING-ROLLER
6 XKAQ-00961 [1] BEARING-ROLLER
7 XKAQ-00404 [1] PLATE-THRUST
8 XKAQ-00753 [1] CARRIER ASSY 2 NOT SHOWN
9 XKAQ-00075 [1] CARRIER 2
10 XKAQ-00023 [3] GEAR-PLANET 2
11 XKAQ-00643 [3] PIN ASSY 2 NOT SHOWN
12 XKAQ-00070 [3] PIN 2 INLC 13
N13. XKAQ-00291 [1] BUSHING 2
14 XKAQ-00071 [6] WASHER-THRUST
15 XKAQ-00048 [3] PIN-SPRING
16 XKAQ-00755 [1] GEAR-SUN 2
17 XKAQ-00754 [1] CARRIER ASSY 1 NOT SHOWN
18 XKAQ-00531 [1] CARRIER 1
19 XKAQ-00025 [3] GEAR-PLANET 1
20 XKAQ-00532 [3] PIN 1
21 XKAQ-00030 [3] CAGE-NEEDLE
22 XKAQ-00057 [3] PLATE-SIDE 1
23 XKAQ-00040 [3] PLATE-SIDE 2
24 XKAQ-00041 [3] RING-STOP
25 XKAQ-00010 [1] GEAR-SUN 1
26 XKAQ-00534 [1] PLATE-SIDE 3
27 XKAQ-00529 [1] GEAR-RING
27 XKAQ-00779 [1] GEAR-RING
28 XKAQ-00977 [1] GEAR-PINION
29 XKAQ-00074 [1] RING-STOP
30 XKAQ-00072 [2] PIN-KNOCK
31 XKAQ-00065 [12] BOLT-SOCKET
32 XKAQ-00031 [1] PLATE-COVER
33 XKAQ-00064 [8] BOLT-HEX
34 XKAQ-00043 [1] PLATE-LOCK
35 XKAQ-00042 [2] BOLT-HEX
36 XKAQ-00292 [1] WASHER-LOCK
37 XKAQ-00049 [1] PLUG
38 XKAQ-00066 [2] PLUG
*-1. @ [1] SWING MOTOR UNIT SEE 4100
N. @ [AR] NOT SUPPLIED PARTS

XKAQ-00754 39Q6-42190 39Q6-42260 XKAQ-00015 XKAQ-00075 R160Lc  R210Lc  HX180L R160LC9 Swing Gearbox Xkaq 1st 2nd Carrier 0



XKAQ-00754 39Q6-42190 39Q6-42260 XKAQ-00015 XKAQ-00075 R160Lc  R210Lc  HX180L R160LC9 Swing Gearbox Xkaq 1st 2nd Carrier 1

XKAQ-00754 39Q6-42190 39Q6-42260 XKAQ-00015 XKAQ-00075 R160Lc  R210Lc  HX180L R160LC9 Swing Gearbox Xkaq 1st 2nd Carrier 2XKAQ-00754 39Q6-42190 39Q6-42260 XKAQ-00015 XKAQ-00075 R160Lc  R210Lc  HX180L R160LC9 Swing Gearbox Xkaq 1st 2nd Carrier 3XKAQ-00754 39Q6-42190 39Q6-42260 XKAQ-00015 XKAQ-00075 R160Lc  R210Lc  HX180L R160LC9 Swing Gearbox Xkaq 1st 2nd Carrier 4











FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
