YN32W01012P1 2401N469 YN15V00009S019 LQ01V00001S016 YN01V00001S012 ZR16X09000 SK200-6 SK200-5 SK210LC Swing Ring Gear

YN32W01012P1 2401N469 YN15V00009S019 LQ01V00001S016 YN01V00001S012 ZR16X09000 SK200-6 SK200-5 SK210LC Swing Ring Gear

  • YN32W01012P1 2401N469 YN15V00009S019 LQ01V00001S016 YN01V00001S012 ZR16X09000 SK200-6 SK200-5 SK210LC Swing Ring Gear
  • YN32W01012P1 2401N469 YN15V00009S019 LQ01V00001S016 YN01V00001S012 ZR16X09000 SK200-6 SK200-5 SK210LC Swing Ring Gear
  • YN32W01012P1 2401N469 YN15V00009S019 LQ01V00001S016 YN01V00001S012 ZR16X09000 SK200-6 SK200-5 SK210LC Swing Ring Gear
  • YN32W01012P1 2401N469 YN15V00009S019 LQ01V00001S016 YN01V00001S012 ZR16X09000 SK200-6 SK200-5 SK210LC Swing Ring Gear
YN32W01012P1 2401N469 YN15V00009S019 LQ01V00001S016 YN01V00001S012 ZR16X09000 SK200-6 SK200-5 SK210LC Swing Ring Gear
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: YN32W01012P1 2401N469 YN15V00009S019 LQ01V00001S016 YN01V00001S012 ZR16X09000 SK200-6 SK200-5 SK210LC
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden Case
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Ring Gear Part Number: YN32W01012P1 2401N469 YN15V00009S019 LQ01V00001S016 YN01V00001S012 ZR16X09000
Used For: SK200-6 SK200-5 SK210LC Condiction: All New
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR
Port: Huangpu After Warranty Service: Online Support Spare Parts
High Light:

SK210LC Swing Ring Gear

,

ZR16X09000 Swing Ring Gear

,

YN01V00001S012 Swing Ring Gear

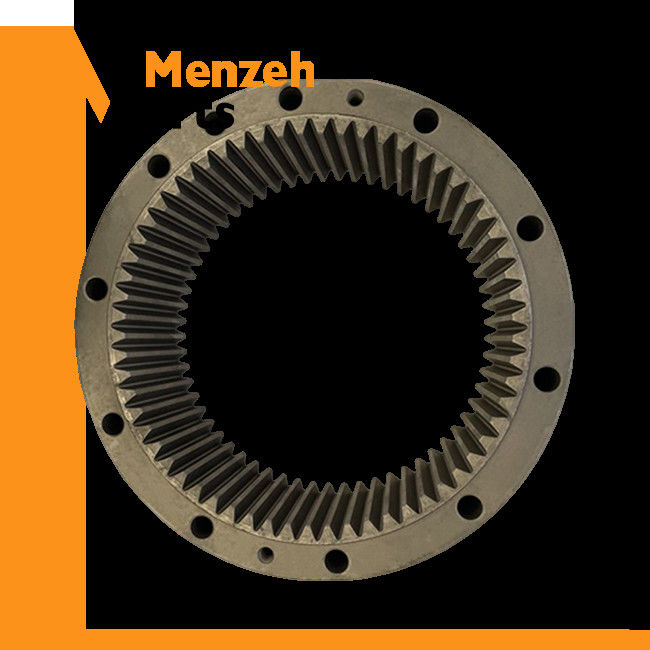

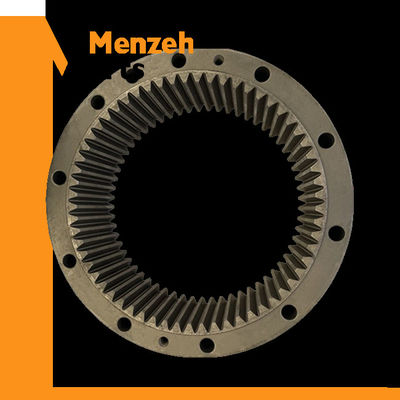

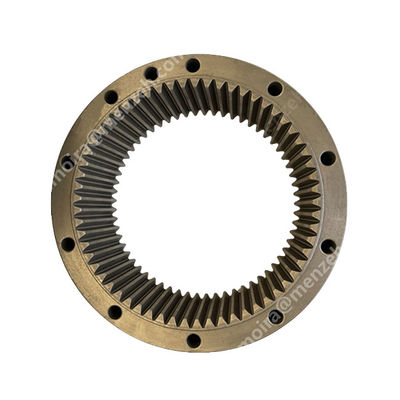

YN32W01012P1 2401N469 YN15V00009S019 LQ01V00001S016 YN01V00001S012 ZR16X09000 SK200-6 SK200-5 SK210LC Excavator Spare Parts Swing Ring Gear Rotary Gearbox Ring Gear



Part Name Ring Gear
Part No. YN32W01012P1 2401N469 YN15V00009S019 LQ01V00001S016 YN01V00001S012 ZR16X09000
Used For SK200-6 SK200-5 SK210LC
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts
Pos. Part No Qty Parts name Comments
. . YN32W00004F1 [1] MOTO-REDUCTION GEAR KOB SWING
. . YN32W00004F1R [1] REMAN-MOTO REDUCTION KOB SK200LC-6 - DYNAMIC ACERA, ASN YQ03501,
. . YN32W00004F1C [1] CORE-MOTO-REDUCTION UNIT KOB Return Number
1 YN32W01003P1 [1] PINION SHAFT KOB
2 YN32W01004P1 [1] SLEEVE KOB
4 ZE82T08000 [1] PLUG KOB 1/2" PT
5 ZD11G10000 [1] O-RING,99.40mm ID x 105.60mm OD x 3.10mm KOB
6 YN32W01034P1 [1] OIL SEAL KOB
7 YN32W01005P1 [1] RETAINER KOB
8 ZS23C08025 [12] SCREW,Hex Socket Head, M8 x 25mm KOB M08x1.25x25mm
9 YN32W01029P1 [1] SPHERICAL BEARING KOB Superseded by part number: R25P0047D9
10 YN32W01033P1 [1] HOUSING KOB HOUSING
11 YN32W01015P1 [1] SPACER KOB
12 YN32W01030P1 [1] SPHERICAL BEARING KOB Superseded by part number: 25Z804D18
13 ZR16X09000 [1] RING KOB Retaining -- ID 84.50 x OD 108 x 3.0mm
14 YN32W01011P1 [1] SPIDER KOB
15 YN32W01006P1 [1] SUN GEAR KOB
16 YN32W01012P1 [1] RING GEAR KOB
17 YN32W01019F1 [1] SPIDER ASSY. KOB
18 ZS23C14130 [10] CAPSCREW,Hex Socket Head, M14 x 130mm KOB SCREW M14x2.0x130mm
19 YN32W01007P1 [1] SUN GEAR KOB
20 ZP26D08025 [4] PIN KOB Roll -- OD 08 x 25mm Long
21 YN32W01001P1 [4] SHAFT KOB SHAFT
22 YN32W01027P1 [8] THRUST WASHER KOB
23 YN32W01008P1 [4] PINION KOB
24 YN32W01021P1 [4] BEARING KOB
25 YN32W01026P1 [3] THRUST WASHER KOB
26 YN32W01002P1 [3] PINION KOB
27 YN32W01022P1 [102] ROLLER KOB
28 YN32W01028P1 [3] THRUST WASHER KOB
29 2418R2D25 [3] RING KOB RETAINING Superseded by part number: ZR16X04000
30 2420T6698D2 [1] PIPE KOB
31 ZG31U12000 [1] ELBOW KOB
32 ZE82T12000 [2] PLUG KOB 3/4" PT
33 2418R2D22 [1] RING KOB RETAINING Superseded by part number: ZR16X03500
34 ZS83C20020 [2] SCREW KOB Set -- M20x2.50x20mm

YN32W01012P1 2401N469 YN15V00009S019 LQ01V00001S016 YN01V00001S012 ZR16X09000 SK200-6 SK200-5 SK210LC Swing Ring Gear 0



YN32W01012P1 2401N469 YN15V00009S019 LQ01V00001S016 YN01V00001S012 ZR16X09000 SK200-6 SK200-5 SK210LC Swing Ring Gear 1

YN32W01012P1 2401N469 YN15V00009S019 LQ01V00001S016 YN01V00001S012 ZR16X09000 SK200-6 SK200-5 SK210LC Swing Ring Gear 2YN32W01012P1 2401N469 YN15V00009S019 LQ01V00001S016 YN01V00001S012 ZR16X09000 SK200-6 SK200-5 SK210LC Swing Ring Gear 3YN32W01012P1 2401N469 YN15V00009S019 LQ01V00001S016 YN01V00001S012 ZR16X09000 SK200-6 SK200-5 SK210LC Swing Ring Gear 4YN32W01012P1 2401N469 YN15V00009S019 LQ01V00001S016 YN01V00001S012 ZR16X09000 SK200-6 SK200-5 SK210LC Swing Ring Gear 5







FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.

YN32W01012P1 2401N469 YN15V00009S019 LQ01V00001S016 YN01V00001S012 ZR16X09000 SK200-6 SK200-5 SK210LC Swing Ring Gear 6YN32W01012P1 2401N469 YN15V00009S019 LQ01V00001S016 YN01V00001S012 ZR16X09000 SK200-6 SK200-5 SK210LC Swing Ring Gear 7YN32W01012P1 2401N469 YN15V00009S019 LQ01V00001S016 YN01V00001S012 ZR16X09000 SK200-6 SK200-5 SK210LC Swing Ring Gear 8YN32W01012P1 2401N469 YN15V00009S019 LQ01V00001S016 YN01V00001S012 ZR16X09000 SK200-6 SK200-5 SK210LC Swing Ring Gear 9
