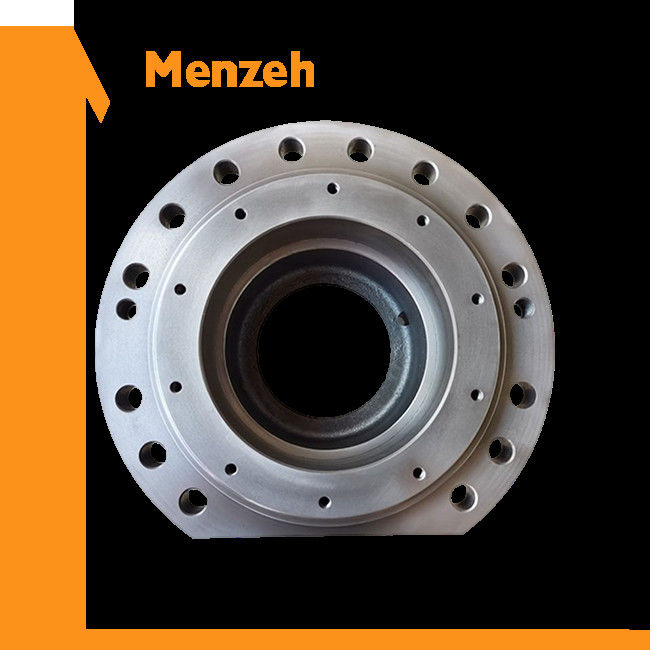

SA7118-30510 VOE14540404 VOE14541030 Rotary Shaft Housing For EC460 EC480 Excavator

SA7118-30510 VOE14540404 VOE14541030 Rotary Shaft Housing For EC460 EC480 Excavator

  • SA7118-30510 VOE14540404 VOE14541030 Rotary Shaft Housing For EC460 EC480 Excavator
  • SA7118-30510 VOE14540404 VOE14541030 Rotary Shaft Housing For EC460 EC480 Excavator
  • SA7118-30510 VOE14540404 VOE14541030 Rotary Shaft Housing For EC460 EC480 Excavator
SA7118-30510 VOE14540404 VOE14541030 Rotary Shaft Housing For EC460 EC480 Excavator
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: SA7118-30510 VOE14540404 VOE14541030
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden Case
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Housing Part Number: SA7118-30510 VOE14540404 VOE14541030
Used For: EC460 EC480 Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

VOE14541030 Rotary Shaft Housing

,

SA7118-30510 Rotary Shaft Housing

,

EC480 Excavator Rotary Shaft Housing

SA7118-30510 VOE14540404 VOE14541030 Rotary Shaft Housing For EC460 EC480 Excavator



Part Name Housing
Part Number SA7118-30510 VOE14540404 VOE14541030
Used For EC460 EC480
Warrenty 3 Months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name Comments
  VOE14541030 [1] Swing gearbox
1 VOE14529015 [1] Valve
2 VOE14540404 [1] Shaft
3 VOE14540405 [1] Collar
4 VOE14509281 [1] Cover
5 VOE990596 [1] O-ring
6 VOE14508911 [1] Seal
7 VOE993025 [10] Hexagon screw
8 VOE14640027 [1] Roller bearing
9 VOE14558674 [1] Roller bearing
10 SA9541-01090 [1] Retaining ring
11 SA7118-30510 [1] Case
12 SA7118-30350 [1] Ring gear
13 VOE950677 [4] Pin
14 SA984363 [12] Bolt
15 SA7118-30370 [1] Plate
16 SA7118-30380 [1] Thrust ring
17 SA7118-30390 [1] Gear
18 SA7118-30480 [1] Washer
19 SA7118-30490 [1] Sun gear
20 SA7118-34510 [1] Adapter
21 SA7118-30200 [1] Planet carrier
22 SA7118-30230 [3] Pin
23 SA7118-30260 [6] Washer
24 SA9325-08010 [3] Spring pin
25 SA7118-30220 [3] Planetary gear
26 VOE14528725 [1] Planet carrier SER NO 11515-11718 SER NO 80001-80334
  VOE14528725 [1] Planet carrier SER NO 11719- SER NO 80335-
27 SA7118-30430 [3] Pin SER NO 11515-11718 SER NO 80001-80334
  VOE14528726 [3] Pin SER NO 11719- SER NO 80335-
28 VOE14550879 [3] Needle bearing SER NO 11515-11718 SER NO 80001-80334
  VOE14550879 [3] Needle bearing SER NO 11719- SER NO 80335-
29 SA7118-30450 [3] Washer
30 SA7118-30460 [3] Washer
31 SA9541-01042 [3] Retaining ring
32 SA9325-08010 [3] Spring pin
33 SA7118-30410 [1] Planet carrier
34 SA7118-30420 [3] Planetary gear
100 VOE14526214 [1] Overhaul kit



SA7118-30510 VOE14540404 VOE14541030 Rotary Shaft Housing For EC460 EC480 Excavator 0



SA7118-30510 VOE14540404 VOE14541030 Rotary Shaft Housing For EC460 EC480 Excavator 1

SA7118-30510 VOE14540404 VOE14541030 Rotary Shaft Housing For EC460 EC480 Excavator 2SA7118-30510 VOE14540404 VOE14541030 Rotary Shaft Housing For EC460 EC480 Excavator 3SA7118-30510 VOE14540404 VOE14541030 Rotary Shaft Housing For EC460 EC480 Excavator 4









FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
