Home ProductsFinal Drive Assy

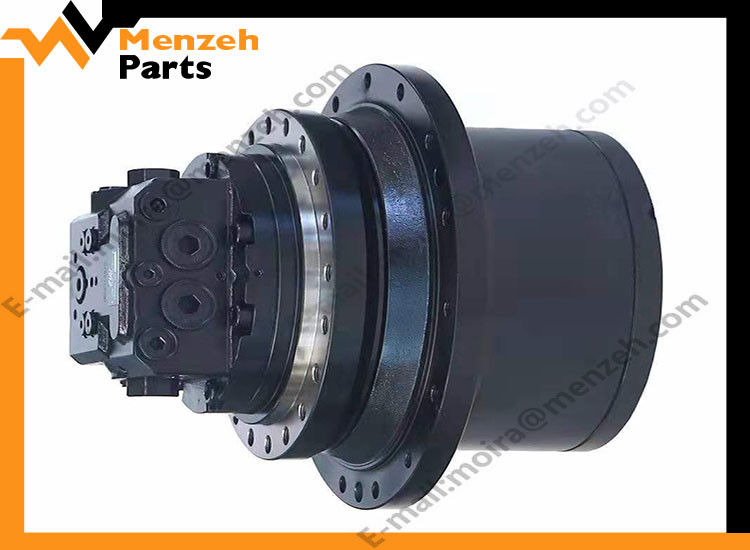

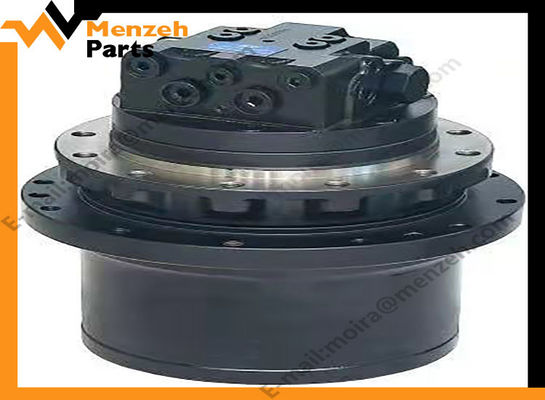

202-60-73102 202-60-63310 202-60-73101 Komatsu Final Drive Motor For PC100-6 PC120-6

202-60-73102 202-60-63310 202-60-73101 Komatsu Final Drive Motor For PC100-6 PC120-6

  • 202-60-73102 202-60-63310 202-60-73101 Komatsu Final Drive Motor For PC100-6 PC120-6
  • 202-60-73102 202-60-63310 202-60-73101 Komatsu Final Drive Motor For PC100-6 PC120-6
202-60-73102 202-60-63310 202-60-73101 Komatsu Final Drive Motor For PC100-6 PC120-6
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: PC100-6 PC120-6
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden Case
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Final Drive Assy Part Number: 202-60-73102 202-60-63310 202-60-73101
Used For: PC100-6 PC120-6 Condiction: All New
Warrenty: 3-12 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR
Port: Huangpu After Warranty Service: Online Support & Free Spare Parts
High Light:

202-60-73102 Komatsu Final Drive Motor

,

202-60-63310 Komatsu Final Drive Motor

,

PC120-6 Final Drive

202-60-73102 202-60-63310 202-60-73101 Final Drive Assy Track Motor Assy PC100-6 PC120-6



Part Name Track Motor Assy
Part Number 202-60-73102 202-60-63310 202-60-73101
Model PC100-6 PC120-6
Delivery 1-3 Days After Payment
Packing Standard or As your Requested



Pos. Part No Qty Parts name Comments
  202-60-73102 [2] TRAVEL MOTOR ASS'Y Komatsu 153.01 kg.
  ["SN: 40624-@"] |$0.
  202-60-73101 [2] TRAVEL MOTOR ASS'Y Komatsu China
  ["SN: 40001-40623"] analogs:["TZ217B200000PF"] |$1.
  TZ205B1000-03 [1] FINAL DRIVE ASS'Y Komatsu China
  ["SN: 40001-40623"] |$4.
1 TZ240B1001-00 [1] HUB Komatsu 44 kg.
  ["SN: 40001-40623"]
  TZ200B1102-03 [1] SPINDLE KIT Komatsu China
  ["SN: 40001-40623"] analogs:["TZ200B110202", "TZ200B113203", "TZ200B113202"] |$6.
2 TZ200B1132-03 [1] SPINDLE ASS'Y Komatsu China
  ["SN: 40001-40623"] analogs:["TZ200B110202", "TZ200B110203", "TZ200B113202"]
3 TZ200B1019-02 [3] BOLT,REAMER Komatsu 0.344 kg.
  ["SN: 40001-40623"] analogs:["TZ200B101903"]
4 TZES100-250-A [1] SEAL,FLOATING (K1) Komatsu 1.21 kg.
  ["SN: 40001-40623"]
5 TZ200B1010-00 [1] PIECE,DISTANCE Komatsu 1.55 kg.
  ["SN: 40001-40623"]
6 07000-15280 [1] O-RING (K1) Komatsu China 0.033 kg.
  ["SN: 40001-40623"] analogs:["0700005280"]
7 TZ200B1021-00 [1] BEARING Komatsu 3.41 kg.
  ["SN: 40001-40623"] analogs:["TZ200B102101"]
  TZ200B1104-02 [1] RV GEAR ASS'Y Komatsu 19 kg.
  ["SN: 40001-40623"] analogs:["TZ263B110400"] |$13.
8 TZ200B1204-01 [1] RV GEAR KIT Komatsu 10 kg.
  ["SN: 40001-40623"] analogs:["TZ263B120400"]
9 TZ200B1009-01 [3] SHAFT,CRANK Komatsu 1.397 kg.
  ["SN: 40001-40623"]
10 TZ200B1022-00 [6] BEARING Komatsu 0.56 kg.
  ["SN: 40001-40623"]
11 TZ200B1023-00 [6] BEARING Komatsu 0.26 kg.
  ["SN: 40001-40623"]
12 TZ150A1020-00 [3] SNAP RING KIT (12 KINDS) Komatsu 0.925 kg.
  ["SN: 40001-40623"]
13 TZ205B1107-01 [1] SPUR GEAR KIT (3 PIECES) Komatsu China
  ["SN: 40001-40623"] analogs:["TZ205B110700"]
14 TZ200B1014-01 [3] PIECE,DISTANCE Komatsu 0.04 kg.
  ["SN: 40001-40623"]
15 04064-03515 [3] RING,SNAP Komatsu 0.005 kg.
  ["SN: 40001-40623"]
16 TZ205B1006-00 [1] GEAR,INPUT Komatsu 0.32 kg.
  ["SN: 40001-40623"]
17 04064-02815 [1] RING,SNAP Komatsu China
  ["SN: 40001-40623"] analogs:["YM22242000280"]
18 TZ200B1017-00 [24] PIN Komatsu China
  ["SN: 40001-40623"]
19 TZ700C1016-00 [1] RING Komatsu China
  ["SN: 40001-40623"]
21 TZ200B1008-00 [1] COVER Komatsu China
  ["SN: 40001-40623"]
22 TZGM1-2 [2] PLUG Komatsu 0.025 kg.
  ["SN: 40001-40623"] analogs:["TZHP000012"]
23 TZARP568-378-9 [1] O-RING (K1) Komatsu 0.026 kg.
  ["SN: 40001-40623"]
24 01010-31245 [12] BOLT Komatsu China 0.056 kg.
  ["SN: 40001-40623"] analogs:["01010E1245", "0101061245"]
25 TZSW-M12 [12] WASHER Komatsu China
  ["SN: 40001-40623"] analogs:["R0SW001220", "TZR0SW001220", "TZSW001220"]
26 07000-11008 [2] O-RING Komatsu China 0.01 kg.
  ["SN: 40001-40623"] analogs:["0700001008", "2016018950"]
27 TZJW1516-G41-9 [1] O-RING Komatsu 0.01 kg.
  ["SN: 40001-40623"]
28 TZJB2808-4-14 [1] PIN,SPRING Komatsu China
  ["SN: 40001-40623"]
K-1. TZ220B9000-00 [1] SERVICE KIT Komatsu China
  ["SN: 40001-40623"]
  07000-15145 [1] O-RING Komatsu China 0.02 kg.
  ["SN: 40001-40623"] analogs:["0700005145"] |$37.
  TZ231F2023-00 [1] RING,BACK-UP Komatsu 0.01 kg.
  ["SN: 40001-40623"] |$38.
  07000-15170 [1] O-RING Komatsu OEM 0.02 kg.
  ["SN: 40001-40623"] analogs:["0700005170"] |$39.
  TZSUN-2BG170 [1] RING,BACK-UP Komatsu 0.01 kg.
  ["SN: 40001-40623"] |$40.
  TZTCN-32-52-11 [1] SEAL,OIL Komatsu China
  ["SN: 40001-40623"] analogs:["R00S325211", "TZR00S325211", "TZOS325211", "TZ03205211", "TZ0S325211", "TZTCH325211", "TZ00S325211"] |$41.
  07000-11009 [1] O-RING Komatsu 0.001 kg.
  ["SN: 40001-40623"] analogs:["0700001009"] |$42.
  07000-13032 [1] O-RING Komatsu China 0.002 kg.
  ["SN: 40001-40623"] analogs:["YM24321000350", "YM24311000320", "0700003032"] |$43.
  07000-11006 [2] O-RING Komatsu 0.01 kg.
  ["SN: 40001-40623"] analogs:["0700001006"] |$44.
  07000-12020 [2] O-RING Komatsu 0.001 kg.
  ["SN: 40001-40623"] |$45.
  07002-02034 [1] O-RING Komatsu China 0.94 kg.
  ["SN: 40001-40623"] analogs:["0700002034", "0700212034", "0700012034"] |$48.

202-60-73102 202-60-63310 202-60-73101 Komatsu Final Drive Motor For PC100-6 PC120-6 0












202-60-73102 202-60-63310 202-60-73101 Komatsu Final Drive Motor For PC100-6 PC120-6 1



202-60-73102 202-60-63310 202-60-73101 Komatsu Final Drive Motor For PC100-6 PC120-6 2
FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.



202-60-73102 202-60-63310 202-60-73101 Komatsu Final Drive Motor For PC100-6 PC120-6 3202-60-73102 202-60-63310 202-60-73101 Komatsu Final Drive Motor For PC100-6 PC120-6 4202-60-73102 202-60-63310 202-60-73101 Komatsu Final Drive Motor For PC100-6 PC120-6 5202-60-73102 202-60-63310 202-60-73101 Komatsu Final Drive Motor For PC100-6 PC120-6 6
