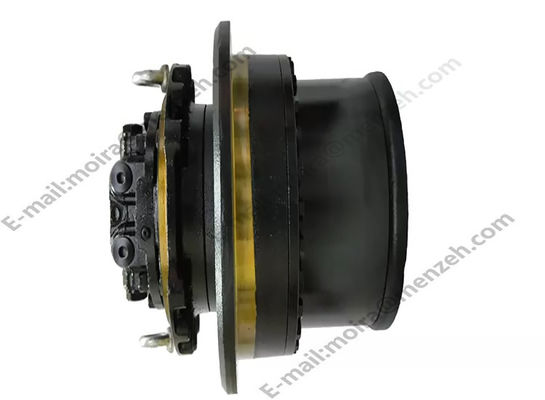

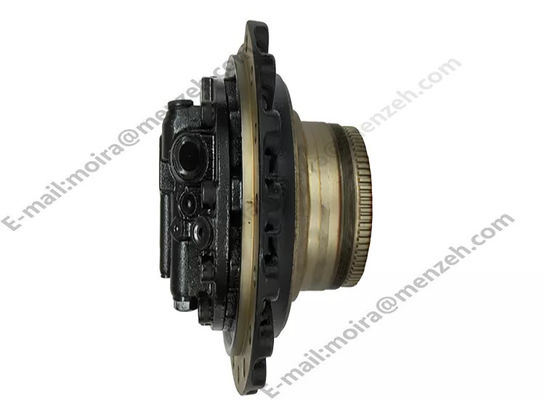

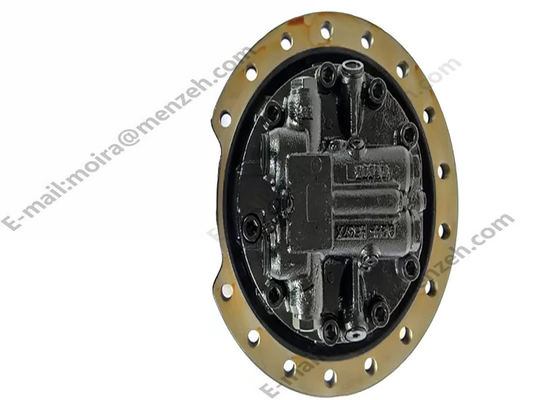

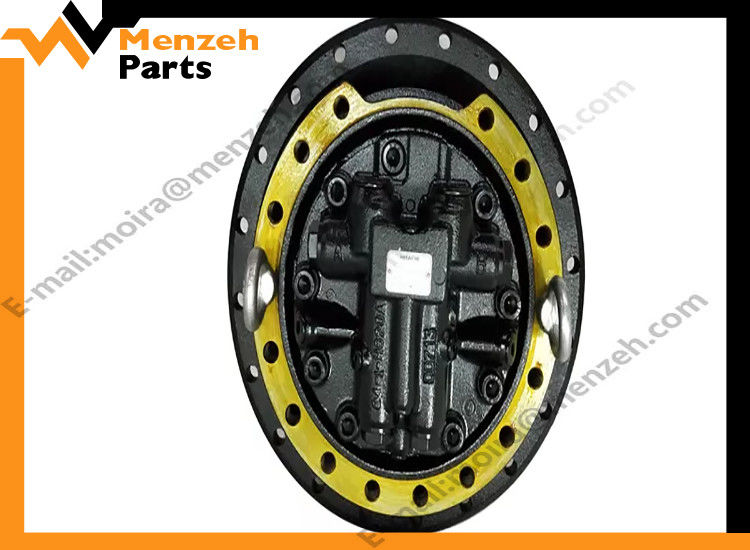

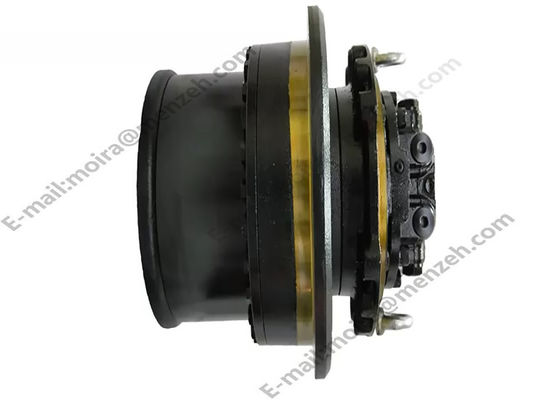

9243839 9258325 9269199 9134825 Hydraulic Final Drive Motor Fit ZX240-3 ZX200

9243839 9258325 9269199 9134825 Hydraulic Final Drive Motor Fit ZX240-3 ZX200

  • 9243839 9258325 9269199 9134825 Hydraulic Final Drive Motor Fit ZX240-3 ZX200
  • 9243839 9258325 9269199 9134825 Hydraulic Final Drive Motor Fit ZX240-3 ZX200
  • 9243839 9258325 9269199 9134825 Hydraulic Final Drive Motor Fit ZX240-3 ZX200
  • 9243839 9258325 9269199 9134825 Hydraulic Final Drive Motor Fit ZX240-3 ZX200
  • 9243839 9258325 9269199 9134825 Hydraulic Final Drive Motor Fit ZX240-3 ZX200
9243839 9258325 9269199 9134825 Hydraulic Final Drive Motor Fit ZX240-3 ZX200
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 9243839 9258325 9269199 9134825
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden Case
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Final Drive Assy Part Number: 9243839 9258325 9269199 9134825
Used For: ZX240-3 ZX200 Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

9243839 Hydraulic Final Drive Motor

,

9258325 Hydraulic Final Drive Motor

,

ZX240-3 9269199

9243839 9258325 9269199 9134825 ZX240-3 ZX200 Final Drive Travel Motor Excavator Hydraulic Parts



Part Name Final Drive Assy
Part Number 9243839 9258325 9269199 9134825
Used For ZX240-3 ZX200
Warrenty 3 Months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name Comments
  9243839 [1] TRAVEL DEVICE I 9256989 <for assembly of machine>
  9256989 [1] TRAVEL DEVICE <for transportation>
0 9242907 [1] MOTOR;OIL I 9257553 <for assembly of machine>
0 9257553 [1] MOTOR;OIL <for transportation>
2 4634693 [1] SEAL;GROUP
3 4246793 [2] BRG.;ROL.
4 1032488 [1] DRUM
5 1032489 [1] SPROCKET
6 J932055 [20] BOLT
7 A590920 [20] WASHER;SPRING
9 3086531 [1] NUT
10 4436242 [1] PIN;KNOCK
11 4628766 [6] BRG.;NEEDLE Y 4445531
11 4445531 [6] BRG.;NEEDLE
12 1032487 [1] CARRIER
13 3103053 [3] GEAR;PLANETARY
15 4624830 [6] PLATE;THRUST
16 4139975 [3] PIN
17 4116309 [3] PIN;SPRING
18 3103054 [1] GEAR;SUN
20 1032490 [1] GEAR;RING
21 J931640 [28] BOLT
23 1032486 [1] CARRIER
24 4183819 [1] SPACER
25 3103052 [3] GEAR;PLANETARY
26 4445529 [3] BRG.;NEEDLE
27 4210851 [6] PLATE;THRUST
28 4309995 [3] PIN
29 4246358 [3] PIN;SPRING
30 3082149 [1] GEAR;SUN
32 1032485 [1] CARRIER
33 4401293 [1] SPACER
34 3103051 [3] GEAR;PLANETARY
35 4406589 [3] BRG.;NEEDLE
36 4148080 [6] PLATE;THRUST
37 4210853 [3] PIN I YB00000839
37 YB00000839 [3] PIN
38 4173093 [3] PIN;SPRING
39 2049585 [1] SHAFT;PROP.
41 2051690 [1] COVER
42 4478346 [1] PIN;STOPPER
43 4699148 [12] BOLT;SEMS
44 4245797 [3] PLUG
46 +++++++ [1] NAME-PLATE
47 M492564 [2] SCREW;DRIVE



9243839 9258325 9269199 9134825 Hydraulic Final Drive Motor Fit ZX240-3 ZX200 0



9243839 9258325 9269199 9134825 Hydraulic Final Drive Motor Fit ZX240-3 ZX200 1

9243839 9258325 9269199 9134825 Hydraulic Final Drive Motor Fit ZX240-3 ZX200 29243839 9258325 9269199 9134825 Hydraulic Final Drive Motor Fit ZX240-3 ZX200 39243839 9258325 9269199 9134825 Hydraulic Final Drive Motor Fit ZX240-3 ZX200 49243839 9258325 9269199 9134825 Hydraulic Final Drive Motor Fit ZX240-3 ZX200 59243839 9258325 9269199 9134825 Hydraulic Final Drive Motor Fit ZX240-3 ZX200 6









FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.



9243839 9258325 9269199 9134825 Hydraulic Final Drive Motor Fit ZX240-3 ZX200 79243839 9258325 9269199 9134825 Hydraulic Final Drive Motor Fit ZX240-3 ZX200 89243839 9258325 9269199 9134825 Hydraulic Final Drive Motor Fit ZX240-3 ZX200 99243839 9258325 9269199 9134825 Hydraulic Final Drive Motor Fit ZX240-3 ZX200 109243839 9258325 9269199 9134825 Hydraulic Final Drive Motor Fit ZX240-3 ZX200 119243839 9258325 9269199 9134825 Hydraulic Final Drive Motor Fit ZX240-3 ZX200 12

9243839 9258325 9269199 9134825 Hydraulic Final Drive Motor Fit ZX240-3 ZX200 139243839 9258325 9269199 9134825 Hydraulic Final Drive Motor Fit ZX240-3 ZX200 149243839 9258325 9269199 9134825 Hydraulic Final Drive Motor Fit ZX240-3 ZX200 15
