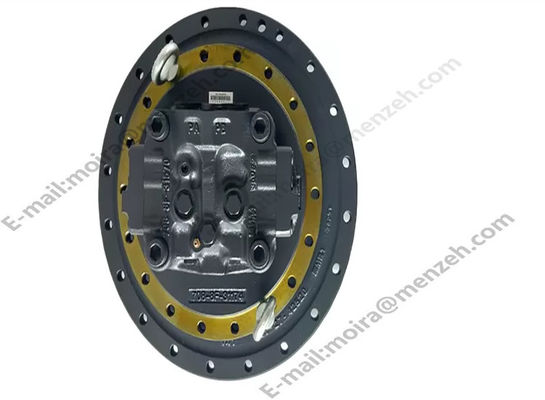

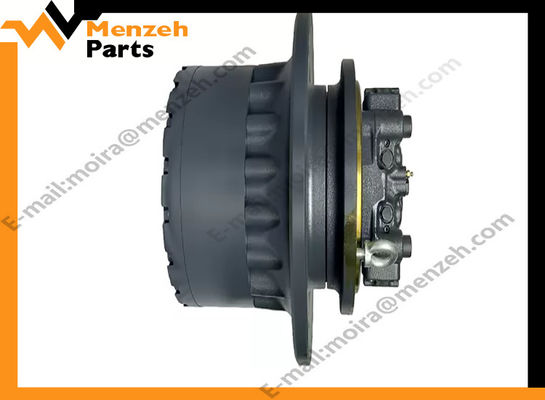

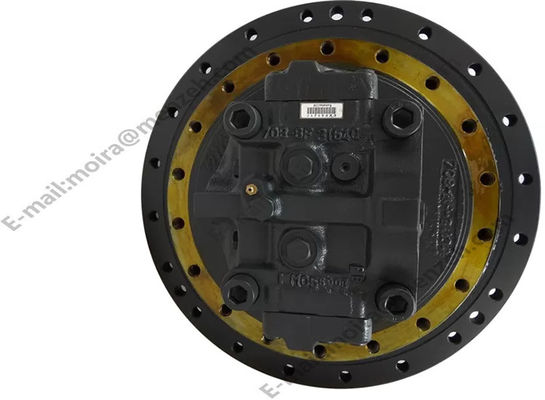

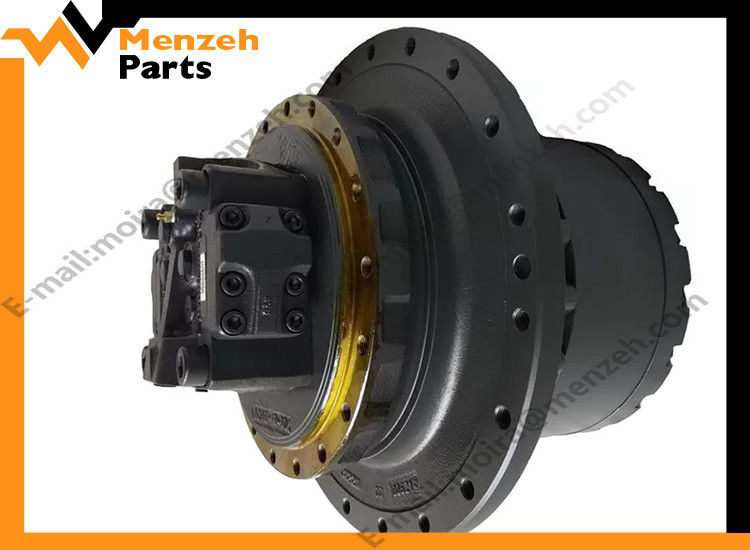

20Y-27-00590 206-27-00025 206-27-00101 Final Drive Assy For PC200-8 PC200-8EO

20Y-27-00590 206-27-00025 206-27-00101 Final Drive Assy For PC200-8 PC200-8EO

  • 20Y-27-00590 206-27-00025 206-27-00101 Final Drive Assy For PC200-8 PC200-8EO
  • 20Y-27-00590 206-27-00025 206-27-00101 Final Drive Assy For PC200-8 PC200-8EO
  • 20Y-27-00590 206-27-00025 206-27-00101 Final Drive Assy For PC200-8 PC200-8EO
  • 20Y-27-00590 206-27-00025 206-27-00101 Final Drive Assy For PC200-8 PC200-8EO
20Y-27-00590 206-27-00025 206-27-00101 Final Drive Assy For PC200-8 PC200-8EO
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 20Y-27-00590 206-27-00025 206-27-00101
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden Case
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Travel Motor Assy Part Number: 20Y-27-00590 206-27-00025 206-27-00101
Used For: PC200-8 PC200-8EO Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

20Y-27-00590 Final Drive Assy

,

206-27-00025 Final Drive Assy

,

PC200-8 206-27-00101

20Y-27-00590 206-27-00025 206-27-00101 PC200-8 PC200-8EO Final Drive Travel Motor Assy



Part Name Final Drive Travel Motor Assy
Part Number 20Y-27-00590 206-27-00025 206-27-00101
Used For PC200-8 PC200-8EO
Warrenty 3 Months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name Comments
  20Y-27-00590 [2] Final Drive Assembly Komatsu China
  ["SN: 400001-UP"] |$0.
  20Y-27-00110 [1] Floating Seal Assembly Komatsu OEM 2.65 kg.
  ["SN: 400001-UP"] |$1.
3. 20Y-27-42520 [1] Hub Komatsu 0.000 kg.
  ["SN: 400001-UP"]
4. 20Y-27-41320 [2] Bearing Komatsu China
  ["SN: 400001-UP"]
5. 20Y-27-22280 [1] O-ring Komatsu China 0.02 kg.
  ["SN: 400001-UP"]
6. 20Y-27-41190 [1] Nut, Lock Komatsu 3 kg.
  ["SN: 400001-UP"]
7. 20Y-27-41180 [1] Lock Komatsu 0.04 kg.
  ["SN: 400001-UP"]
8. 01010-81020 [2] Bolt Komatsu 0.161 kg.
  ["SN: 400001-UP"] analogs:["801014093", "0101051020", "801015108"]
9. 20Y-27-42540 [1] Carrier Komatsu China
  ["SN: 400001-UP"]
10. 20Y-27-22140 [4] Gear Komatsu China 3.72 kg.
  ["SN: 400001-UP"]
11. 20Y-27-22220 [4] Bearing Komatsu China 0.3 kg.
  ["SN: 400001-UP"] analogs:["20Y2721270"]
12. 20Y-27-21250 [8] Washer, Thrust Komatsu China 0.03 kg.
  ["SN: 400001-UP"]
13. 20Y-27-21230 [4] Pin Komatsu 1.54 kg.
  ["SN: 400001-UP"]
14. 20Y-27-21290 [4] Pin Komatsu OEM 0.03 kg.
  ["SN: 400001-UP"]
15. 20Y-27-13310 [1] Washer, Thrust Komatsu China 0.08 kg.
  ["SN: 400001-UP"]
16. 20Y-27-22130 [1] Gear Komatsu China 1.75 kg.
  ["SN: 400001-UP"]
17. 20Y-27-22240 [1] Washer, Thrust Komatsu China 0.03 kg.
  ["SN: 400001-UP"]
18. 20Y-27-22151 [1] Gear Komatsu 43.7 kg.
  ["SN: 400001-UP"] analogs:["20Y2722150"]
19. 20Y-27-22160 [1] Carrier Komatsu OEM 6 kg.
  ["SN: 400001-UP"]
20. 20Y-27-22120 [3] Gear Komatsu China 2.5 kg.
  ["SN: 400001-UP"]
21. 20Y-27-22210 [3] Bearing Komatsu China 0.12 kg.
  ["SN: 400001-UP"] analogs:["20Y2721260"]
22. 20Y-27-21240 [6] Washer, Thrust Komatsu China 0.02 kg.
  ["SN: 400001-UP"]
23. 20Y-27-21220 [3] Pin Komatsu China 0.411 kg.
  ["SN: 400001-UP"]
24. 20Y-27-21280 [3] Pin Komatsu China 0.01 kg.
  ["SN: 400001-UP"]
25. 20Y-27-42510 [1] Shaft Komatsu OEM 0.000 kg.
  ["SN: 400001-UP"]
26. 20Y-27-21310 [1] Washer Komatsu China 0.17 kg.
  ["SN: 400001-UP"]
27. 20Y-27-42530 [1] Cover Komatsu China
  ["SN: 400001-UP"]
28. 04260-01587 [1] Ball, Steel Komatsu 0.018 kg.
  ["SN: 400001-UP"]
29. 20Y-27-13281 [18] Bolt Komatsu 0.31 kg.
  ["SN: 400001-UP"]
30. 01643-31645 [18] Washer Komatsu 0.072 kg.
  ["SN: 400001-UP"] analogs:["802170005", "0164301645"]
31. 07049-01012 [2] Plug Komatsu 0.001 kg.
  ["SN: 400001-UP"]
32. 07044-12412 [3] Plug Komatsu 0.09 kg.
  ["SN: 400001-UP"] analogs:["0704402412", "R0704412412"]
33. 07002-12434 [3] O-ring Komatsu China 0.01 kg.
  ["SN: 400001-UP"] analogs:["0700202434", "0700213434"]
34. 20Y-27-11582 [1] Sprocket Komatsu China 36.2 kg.
  ["SN: 400001-UP"] analogs:["20Y2711581", "20Y27K1110", "20Y2777110"]
35. 20Y-27-11561 [20] Bolt Komatsu China 0.14 kg.
  ["SN: 400001-UP"]
36 01010-61660 [36] Bolt Komatsu 0.127 kg.
  ["SN: 400001-UP"] analogs:["0101031660", "0101081660"]
38 20Y-30-44191 [2] Cover Komatsu China
  ["SN: 400002-UP"]
38 20Y-30-44190 [2] Cover Komatsu China
  ["SN: 400001-400001"]
39 01010-81230 [8] Bolt Komatsu 0.043 kg.
  ["SN: 400001-UP"] analogs:["0101051230", "01010B1230"]
40 01643-31232 [8] Washer Komatsu 0.027 kg.
  ["SN: 400001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
41 708-8F-00330 [-1] Motor Assembly Komatsu China



20Y-27-00590 206-27-00025 206-27-00101 Final Drive Assy For PC200-8 PC200-8EO 0

20Y-27-00590 206-27-00025 206-27-00101 Final Drive Assy For PC200-8 PC200-8EO 1

20Y-27-00590 206-27-00025 206-27-00101 Final Drive Assy For PC200-8 PC200-8EO 220Y-27-00590 206-27-00025 206-27-00101 Final Drive Assy For PC200-8 PC200-8EO 320Y-27-00590 206-27-00025 206-27-00101 Final Drive Assy For PC200-8 PC200-8EO 420Y-27-00590 206-27-00025 206-27-00101 Final Drive Assy For PC200-8 PC200-8EO 5









FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.



20Y-27-00590 206-27-00025 206-27-00101 Final Drive Assy For PC200-8 PC200-8EO 620Y-27-00590 206-27-00025 206-27-00101 Final Drive Assy For PC200-8 PC200-8EO 720Y-27-00590 206-27-00025 206-27-00101 Final Drive Assy For PC200-8 PC200-8EO 820Y-27-00590 206-27-00025 206-27-00101 Final Drive Assy For PC200-8 PC200-8EO 920Y-27-00590 206-27-00025 206-27-00101 Final Drive Assy For PC200-8 PC200-8EO 1020Y-27-00590 206-27-00025 206-27-00101 Final Drive Assy For PC200-8 PC200-8EO 11

20Y-27-00590 206-27-00025 206-27-00101 Final Drive Assy For PC200-8 PC200-8EO 1220Y-27-00590 206-27-00025 206-27-00101 Final Drive Assy For PC200-8 PC200-8EO 1320Y-27-00590 206-27-00025 206-27-00101 Final Drive Assy For PC200-8 PC200-8EO 14
