Home ProductsFinal Drive Assy

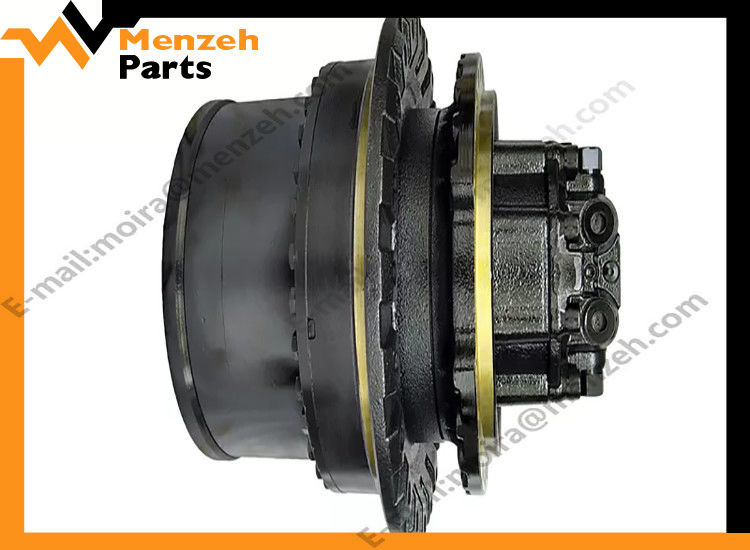

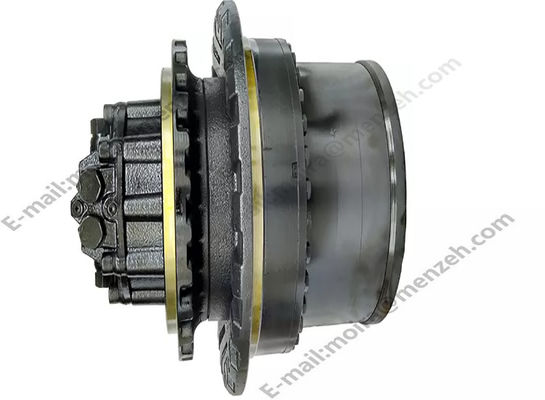

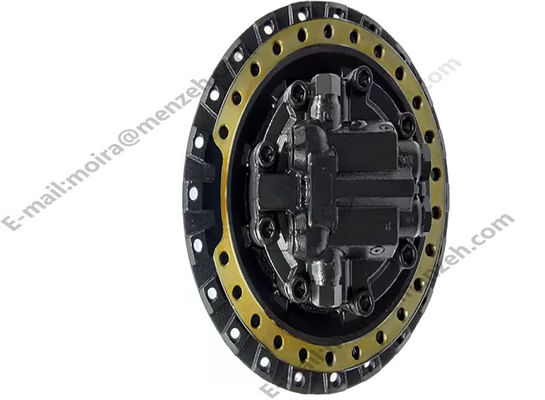

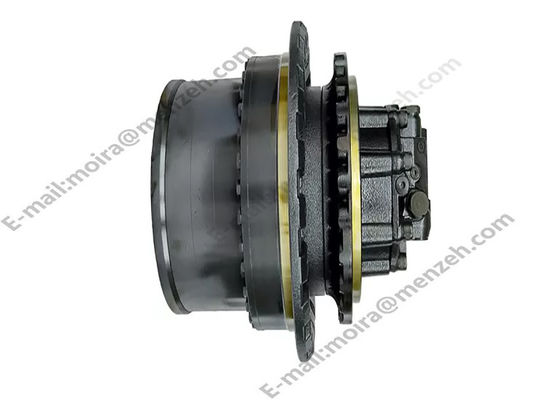

9281920 9281921 9256991 9244944 Final Drive Assy For ZX330 ZX330-3 ZX290L-5G

9281920 9281921 9256991 9244944 Final Drive Assy For ZX330 ZX330-3 ZX290L-5G

  • 9281920 9281921 9256991 9244944 Final Drive Assy For ZX330 ZX330-3 ZX290L-5G
  • 9281920 9281921 9256991 9244944 Final Drive Assy For ZX330 ZX330-3 ZX290L-5G
  • 9281920 9281921 9256991 9244944 Final Drive Assy For ZX330 ZX330-3 ZX290L-5G
  • 9281920 9281921 9256991 9244944 Final Drive Assy For ZX330 ZX330-3 ZX290L-5G
9281920 9281921 9256991 9244944 Final Drive Assy For ZX330 ZX330-3 ZX290L-5G
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 9281920 9281921 9256991 9244944
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden Case
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Travel Motor Assy Part Number: 9281920 9281921 9256991 9244944
Used For: ZX330 ZX330-3 ZX290L-5G Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

9281920 Final Drive Assy

,

9281921 Final Drive Assy

,

ZX330 9256991

9281920 9281921 9256991 9244944 ZX330 ZX330-3 ZX290L-5G Final Drive KYB Travel Motor Hydraulic Parts



Part Name Final Drive KYB Travel Motor
Part Number 9281920 9281921 9256991 9244944
Used For ZX330 ZX330-3 ZX290L-5G
Warrenty 3 Months
After Warranty

Video technical support Online support Free Spare parts





Pos. Part No Qty Parts name Comments
  9281920 [1] TRAVEL DEVICE I 9281921 <for assembly of machine>
  9281921 [1] TRAVEL DEVICE <for transportation>
0 9281841 [1] MOTOR;OIL I 9281842 <for assembly of machine>
0 9281842 [1] MOTOR;OIL <for transportation>
3 4066695 [1] SEAL;GROUP Y 4664392
3 4664392 [1] SEAL;GROUP
4 4629674 [2] BRG.;ROL.
5 1033164 [1] DRUM
6 1033163 [1] SPROCKET
7 A590922 [22] WASHER;SPRING
8 J932265 [22] BOLT
10 3094717 [1] NUT
11 4470326 [1] PLATE;LOCK
12 J901225 [2] BOLT
14 1032599 [1] CARRIER
15 4621530 [3] SPACER
16 3103555 [4] GEAR;PLANETARY
17 4628768 [8] BRG.;NEEDLE
18 4269470 [8] PLATE;THRUST
19 4269452 [4] PIN
20 4207947 [4] PIN;SPRING
21 3103554 [1] GEAR;SUN
23 1032600 [1] GEAR;RING
24 J931640 [34] BOLT
26 1032598 [1] CARRIER
27 3103553 [3] GEAR;PLANETARY
28 4628766 [3] BRG.;NEEDLE
29 4284521 [6] PLATE;THRUST
30 4269451 [3] PIN
31 4197763 [3] PIN;SPRING
32 3103552 [1] GEAR;SUN
34 1032597 [1] CARRIER
36 3103551 [3] GEAR;PLANETARY
37 4455098 [3] BRG.;NEEDLE
38 4642993 [6] PLATE;THRUST
39 4269472 [3] PIN
40 4192020 [3] PIN;SPRING
41 2051884 [1] SHAFT;PROP.
43 1032596 [1] COVER
44 4277474 [1] PIN;STOPPER
45 4278168 [1] BRG.;BALL
46 930451 [1] RING;RETAINING
47 4609016 [20] BOLT;SEMS Y 4699148
47 4699148 [20] BOLT;SEMS
48 4245797 [3] PLUG
51 +++++++ [1] NAME-PLATE
52 M492564 [2] SCREW;DRIVE








9281920 9281921 9256991 9244944 Final Drive Assy For ZX330 ZX330-3 ZX290L-5G 0

9281920 9281921 9256991 9244944 Final Drive Assy For ZX330 ZX330-3 ZX290L-5G 1

9281920 9281921 9256991 9244944 Final Drive Assy For ZX330 ZX330-3 ZX290L-5G 29281920 9281921 9256991 9244944 Final Drive Assy For ZX330 ZX330-3 ZX290L-5G 39281920 9281921 9256991 9244944 Final Drive Assy For ZX330 ZX330-3 ZX290L-5G 49281920 9281921 9256991 9244944 Final Drive Assy For ZX330 ZX330-3 ZX290L-5G 5









FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.



9281920 9281921 9256991 9244944 Final Drive Assy For ZX330 ZX330-3 ZX290L-5G 69281920 9281921 9256991 9244944 Final Drive Assy For ZX330 ZX330-3 ZX290L-5G 79281920 9281921 9256991 9244944 Final Drive Assy For ZX330 ZX330-3 ZX290L-5G 89281920 9281921 9256991 9244944 Final Drive Assy For ZX330 ZX330-3 ZX290L-5G 99281920 9281921 9256991 9244944 Final Drive Assy For ZX330 ZX330-3 ZX290L-5G 109281920 9281921 9256991 9244944 Final Drive Assy For ZX330 ZX330-3 ZX290L-5G 11

9281920 9281921 9256991 9244944 Final Drive Assy For ZX330 ZX330-3 ZX290L-5G 129281920 9281921 9256991 9244944 Final Drive Assy For ZX330 ZX330-3 ZX290L-5G 139281920 9281921 9256991 9244944 Final Drive Assy For ZX330 ZX330-3 ZX290L-5G 14
